Description:

Name: bluetooth Receiver & Audio Converter Model: B36 Frequency response range: 10Hz-20kHz output Signal-to-noise ratio: >110dB Distortion + noise: <0.02%

bluetooth version: 5.1 Output impedance: 75 ohms Decoder chip: bluetooth 5.1 Output: RCA/3.5mm Effective distance: 10 meters Support: A2DP/AVRCP Input: Optical/Coaxial Operation function Power on/off: Turn on the power and turn it on, the blue indicator light will be on after turning on the power, and it will enter the bluetooth mode. Long press the button to switch the digital optical fiber coaxial to analog audio output mode, the red light is on.

Product Description:

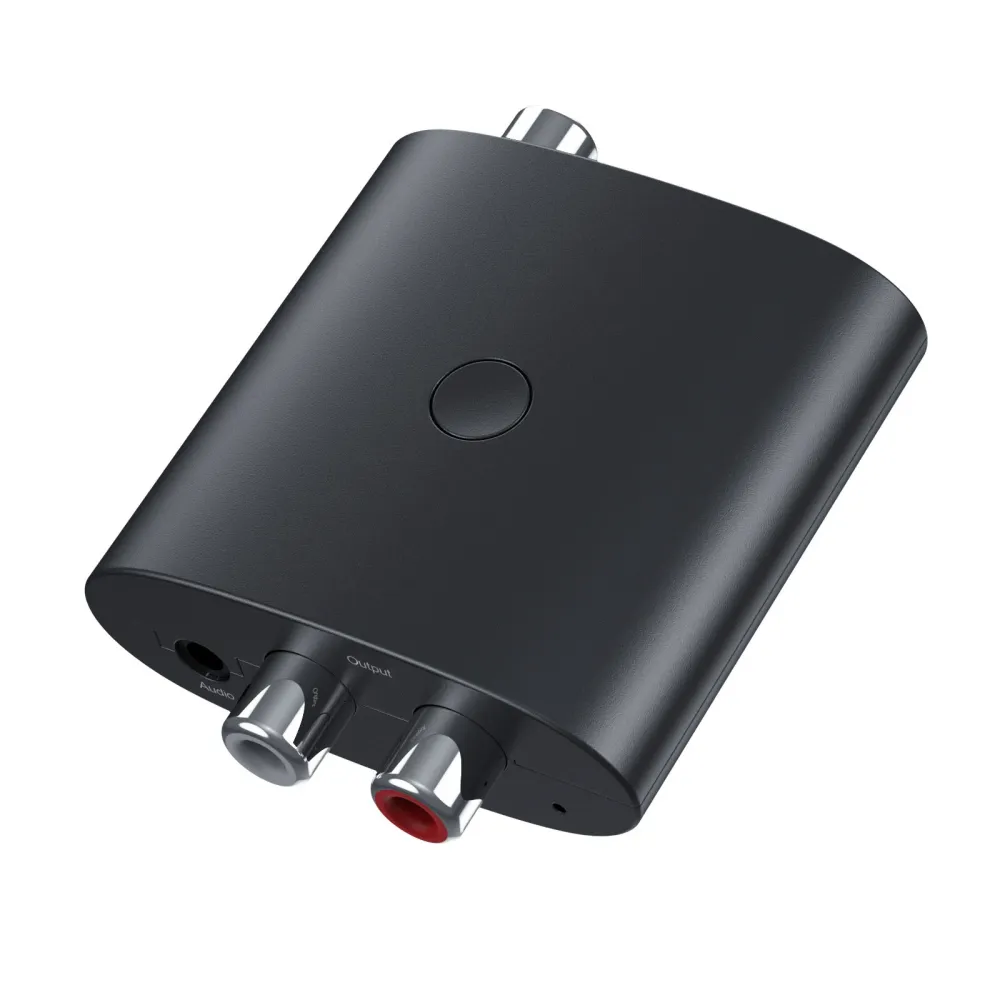

This product is a bluetooth receiver & digital optical fiber, coaxial/to-analog audio converter. This product is easy to operate and can freely receive most bluetooth audio. Through this product, digital audio can be converted into analog audio signals. It can wirelessly transmit the music in the mobile phone to the audio equipment. Suitable for TV, game console, CD player, MP3, etc. It perfectly solves the limitations of audio equipment and expands the functions of various audio equipment.

Key Function:

1. bluetooth receiving mode A. Power on the device, the blue light flashes, and wait for bluetooth pairing. B. Connect the output terminal to the AUX/RCA cable and connect it to audio power amplifier and other equipment. C. Turn on the bluetooth function on the mobile phone or tablet computer, search for bluetooth devices, select "B36" in the bluetooth list and click to connect the device, D. After the connection is successful, the blue indicator light is always on. 2. Digital fiber to coaxial conversion analog audio A. Power on the device, the bluetooth light is on at this time, press and hold the middle button to switch to DAC mode, the red light is always on, and switch between optical fiber and coaxial by long pressing the button. B. Insert the optical fiber or coaxial cable into the interface at the input end, and then connect the 3.5mm or RCA cable to the output end to connect with audio, power amplifier and other equipment to realize digital-to-analog conversion audio output. Note: The default boot mode of this product is bluetooth receiving mode

Package Included:

1 x bluetooth Adapter
