Price According to Your Region $30.79
Mini Microzone MC6C 2,4GHz 6CH Fernbedienung mit MC6RE-V2/MC7RB-V2 Empfänger für RC Flugzeug Model Fixed Wing FPV Racer Drone

Mini Microzone MC6C 2,4GHz 6CH Fernbedienung mit MC6RE-V2/MC7RB-V2 Empfänger für RC Flugzeug Model Fixed Wing FPV Racer Drone

Brand:banggood
Product Code: 2017813
SKU : 2017813
Product available in stock : 1
  • $30.79

    $33.88   9% off
  • Ex Tax: $30.79

Available Options

Mini Microzone MC6C 2,4GHz 6CH Fernbedienung mit MC6RE-V2/MC7RB-V2 Empfänger für RC Flugzeug Model Fixed Wing FPV Racer Drone

Tags: Mini Microzone MC6C 2, 4GHz 6CH Fernbedienung mit MC6RE-V2/MC7RB-V2 Empfänger für RC Flugzeug Model Fixed Wing FPV Racer Drone

Microzone MC6C Mini 2.4GHz 6CH Remote Controller with MC6RE-V2/MC7RB-V2 Receiver for RC Aircraft Model Fixed Wing FPV Racer Drone


Description:
Brand: Microzone
Model: MC6C MINI
Number of channels: 6
Control range: >800m
Frequency range: 2401 - 2478MHz
Rocker dynamic range: 80%-120%
Fine-tuning method: Electronic fine-tuning
Transmitting power: ≤100mw
Input voltage: DC4.5-9V
Modulation mode: FSK

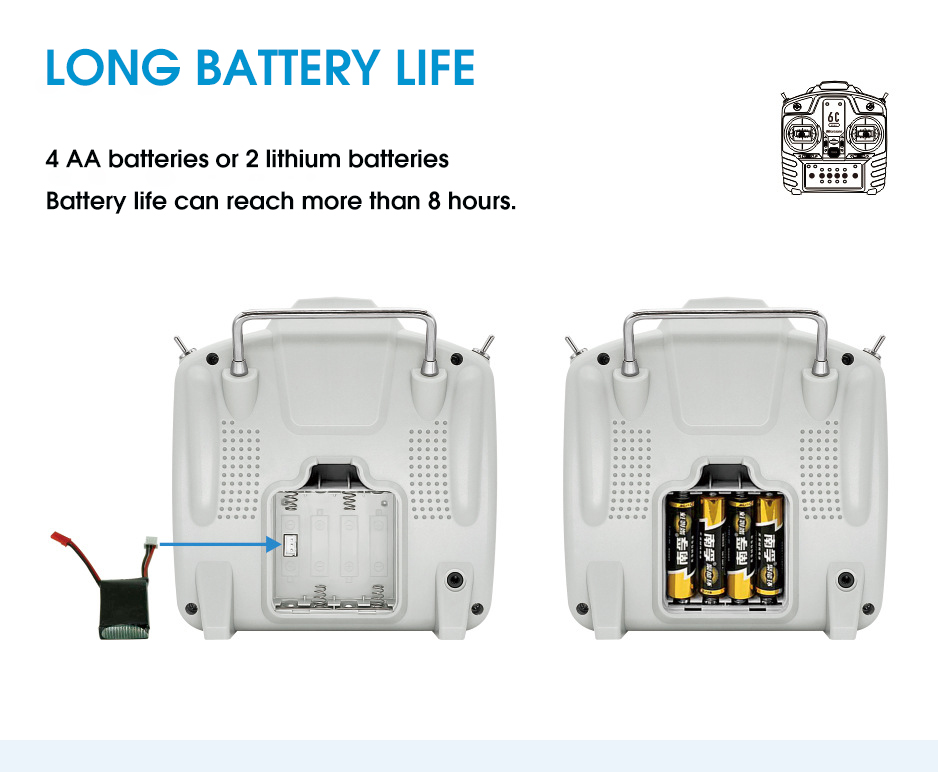

Remote control power supply requirements: 4 × 5 batteries or 2S lithium batteries
Low voltage alarm: Yes
Analog Picking (PPM): Yes
Channel forward and reverse indication: Support

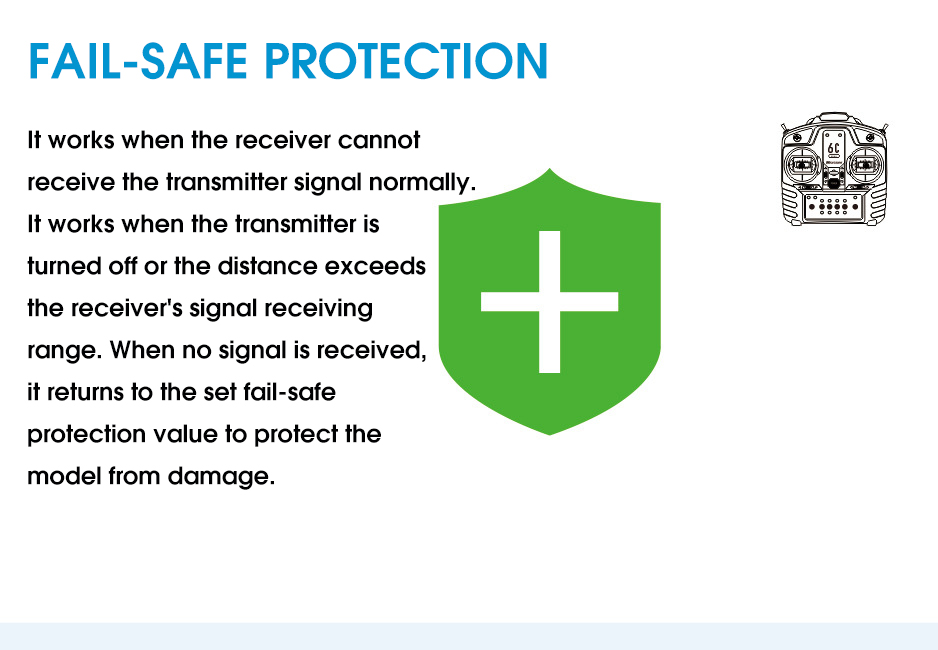

Runaway protection settings: Support
LED indication: Support
Support receivers: MC6RE-V2/MC7RB-V2/MC6RE/MC7RB/MC9002/E6R-E

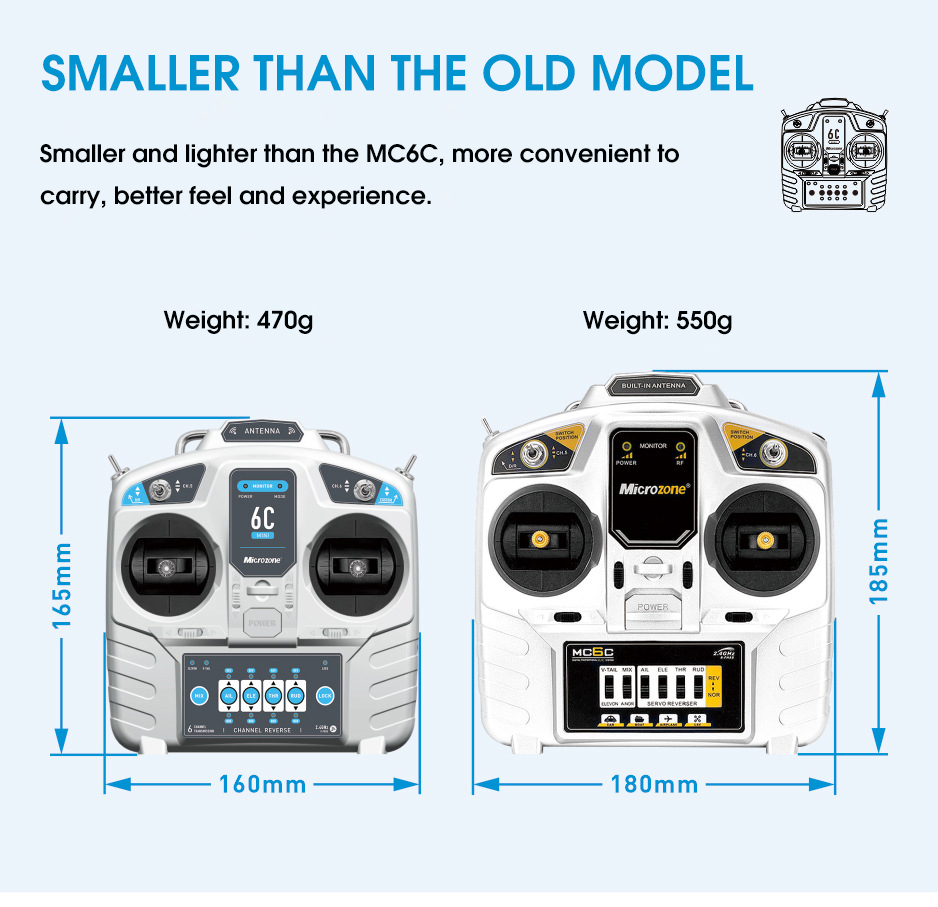

Size: 160*80*165mm
Weight: 470g

Applications: Fixed-wing/Car/Boat/Multi-axis/Lawn mower/ Inteligent agricultural machinery

Receiver Specifications:
Model: MC6RE-V2 / MC7RB-V2 (Optional)
Applications: Fixed-wing/Car/Boat/RC Drone
Channel output: 6 PWM signals, 1 SBUS signal, 7 PWM signals, 1 SBUS signal
Frequency range: 2401 MHz-2478MHz
Control range: >800m
Receiver supply voltage: DC: 4.5-6V
SBUS signal: Support
Frequency pairing mode: Contact to frequency
Recovery performance: Fast signal recovery
Runaway protection settings: Support
Remote control support: 6C-MINI/C7-MINI/8B-MINI/C10-MINI
Antenna type: Extermal antenna | Built-in antenna
Antenna length: 110mm | /
Size: 37*23*13(mm) | 42*30*13(mm)
Weight: 7g

Package Included:
1x MC6C MINI Remote Controller

1x MC6RE-V2/MC7RB-V2 (Optional)
1x Box



Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-1

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-2

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-3

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-4

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-5

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-6

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-7

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-8

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-9

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-10

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-11

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-12

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-13

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-14

Mini-Microzone-MC6C-24GHz-6CH-Fernbedienung-mit-MC6RE-V2MC7RB-V2-Empfaumlnger-fuumlr-RC-Flugzeug-Mod-2017813-15
