Specifications:
Brand: TEOSAW
Model:Â
APEX X5/X6/X7

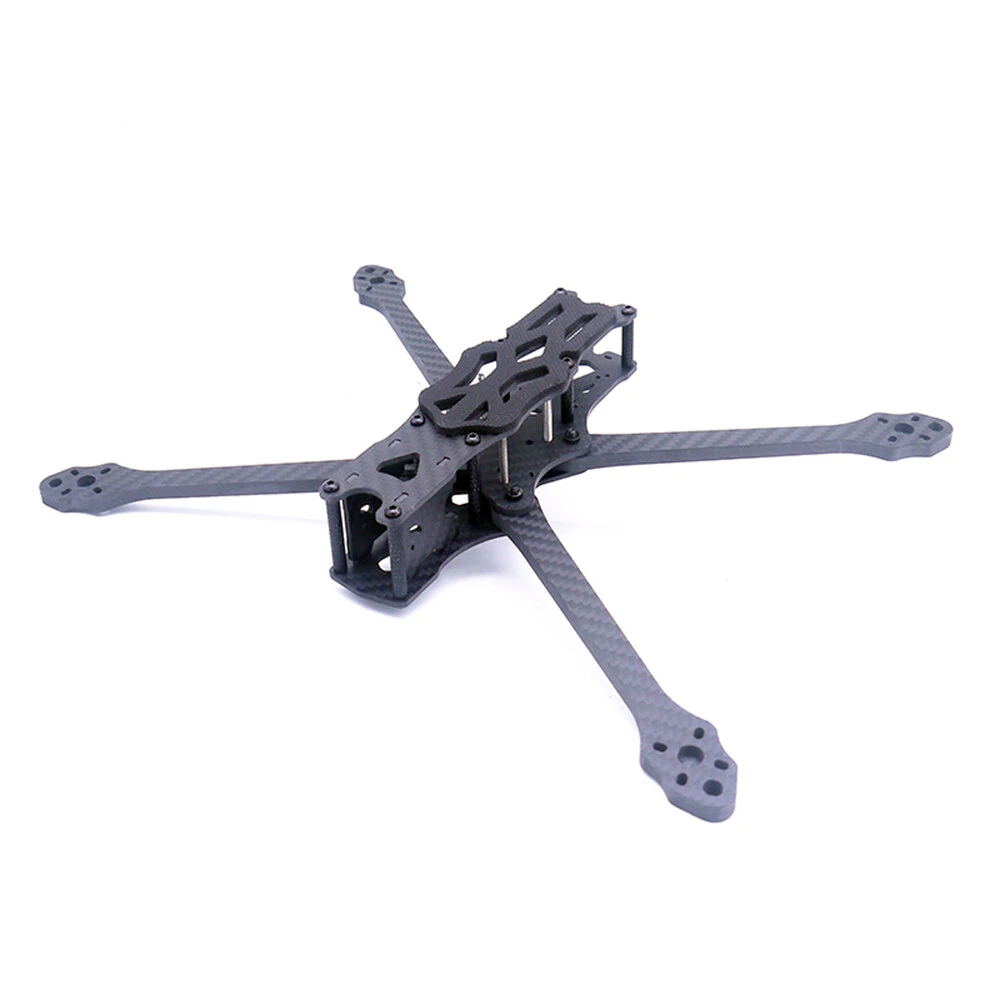

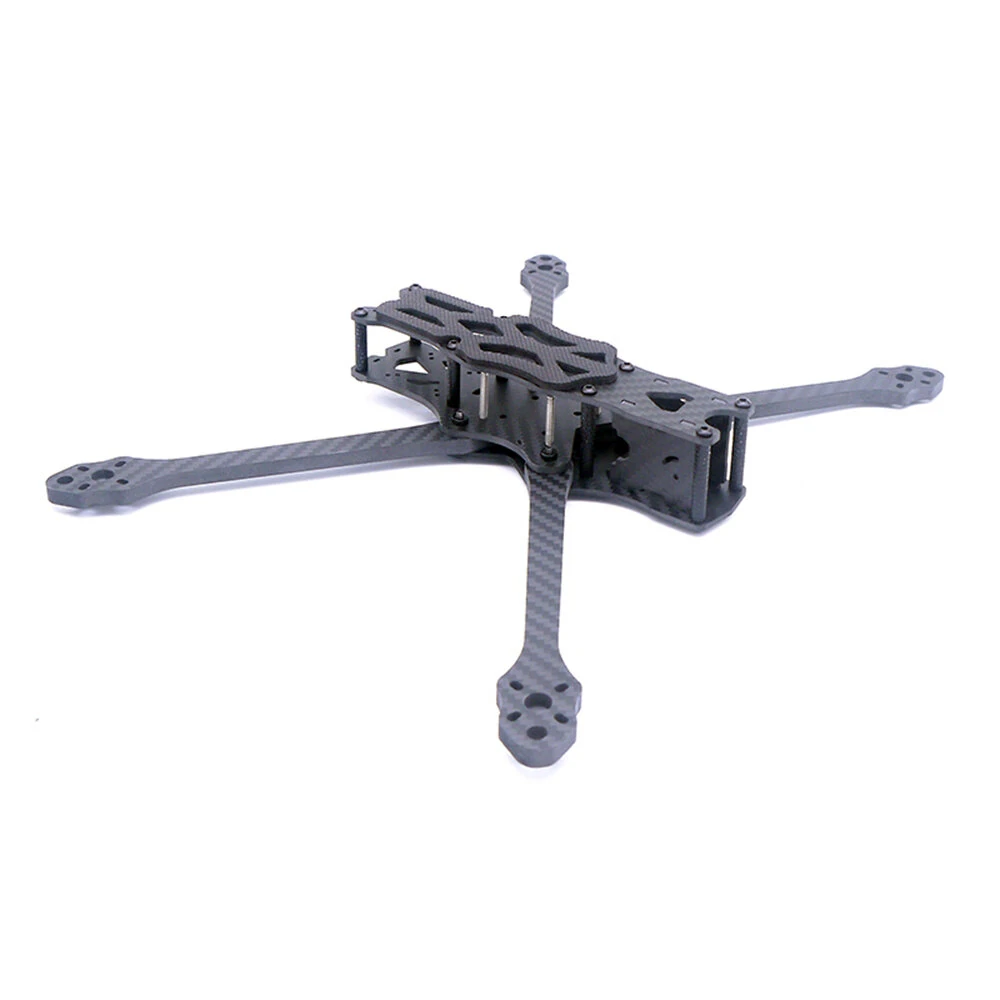

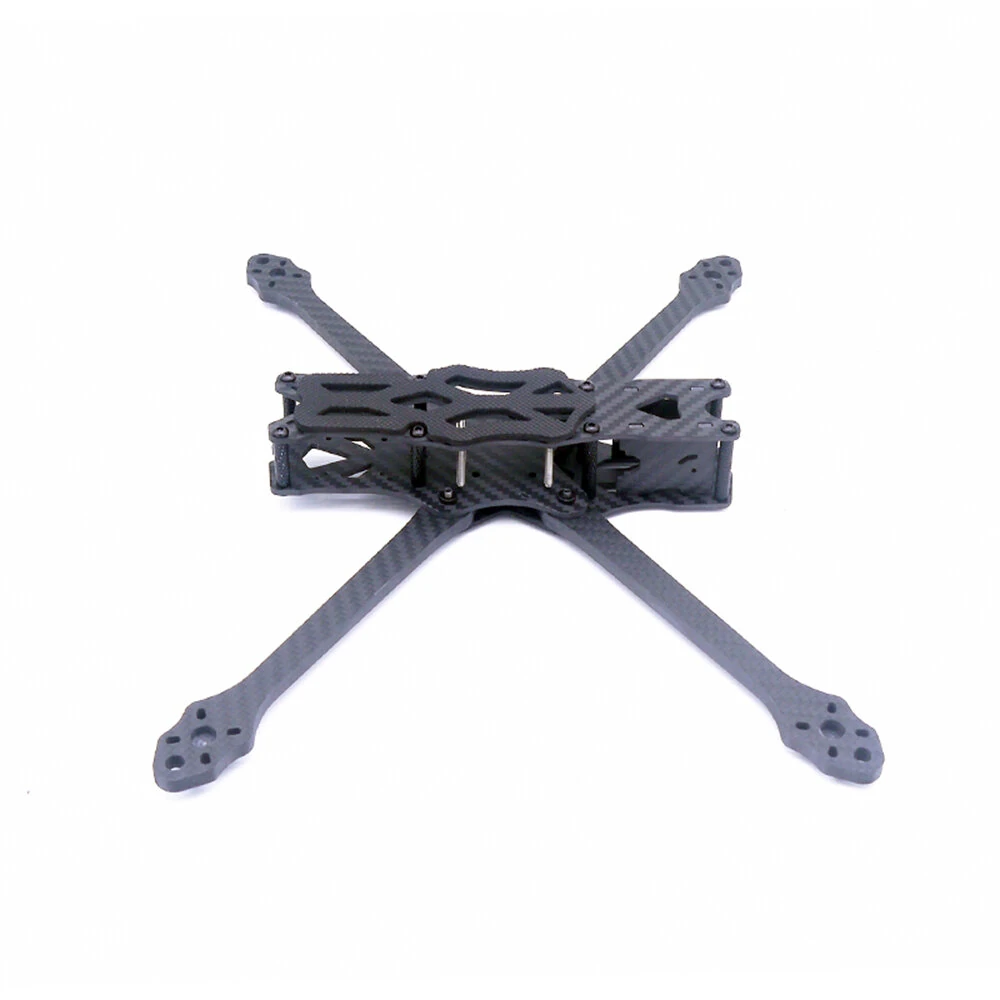

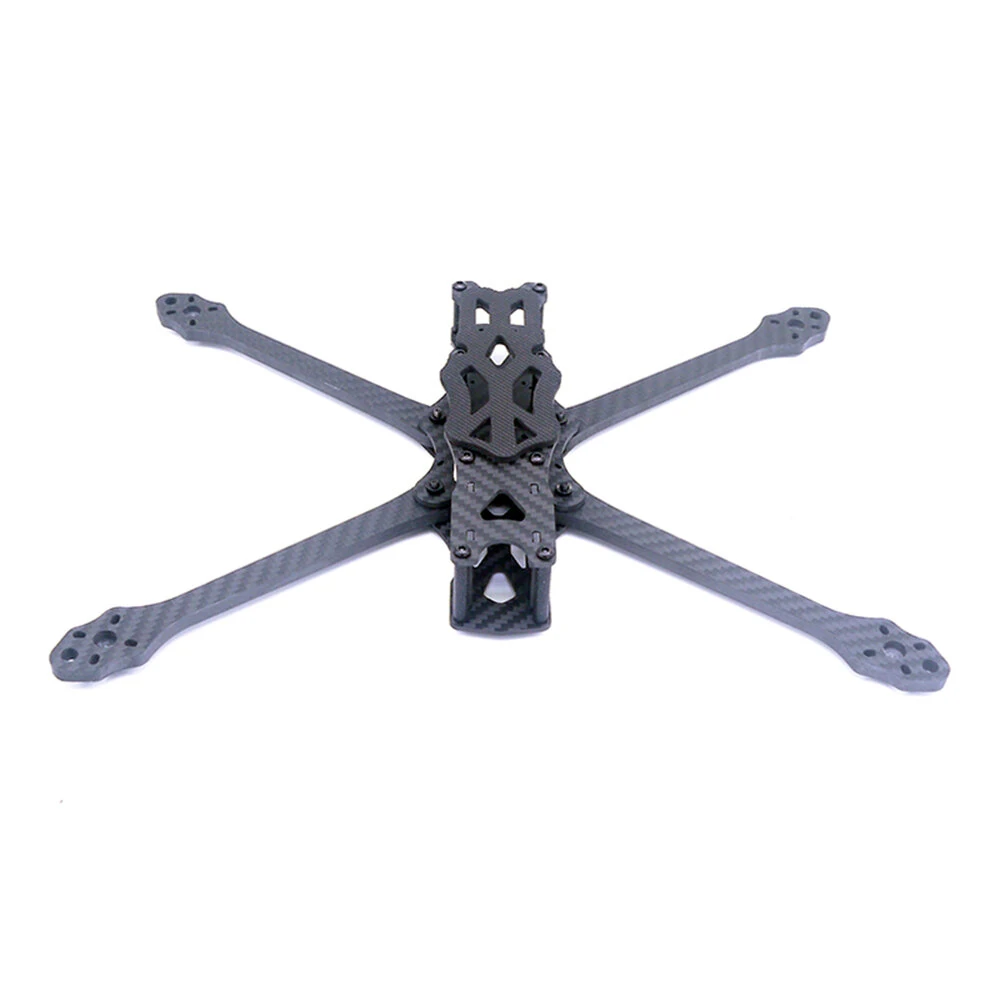

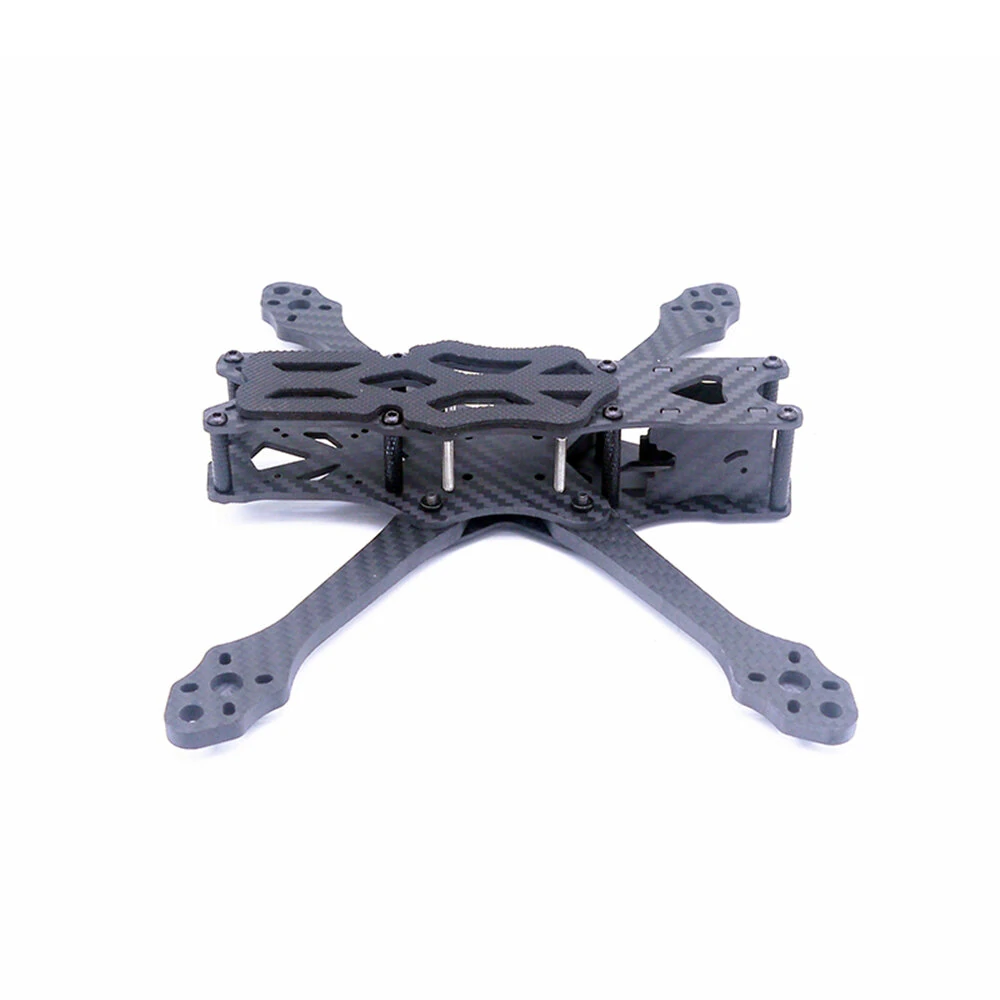

Item Name: 5 Inch/6 Inch/7 Inch Frame Kit
Model: | APEX X5 | APEX X6 | APEX X7 |
Wheelbase: | 225mm | 275mm | 315mm |
Appearance Size: | Approx.165mm x 213mm x 35mm | Approx.189mm x 253mm x 35mm | Approx.212mm x 286mm x 35mm |

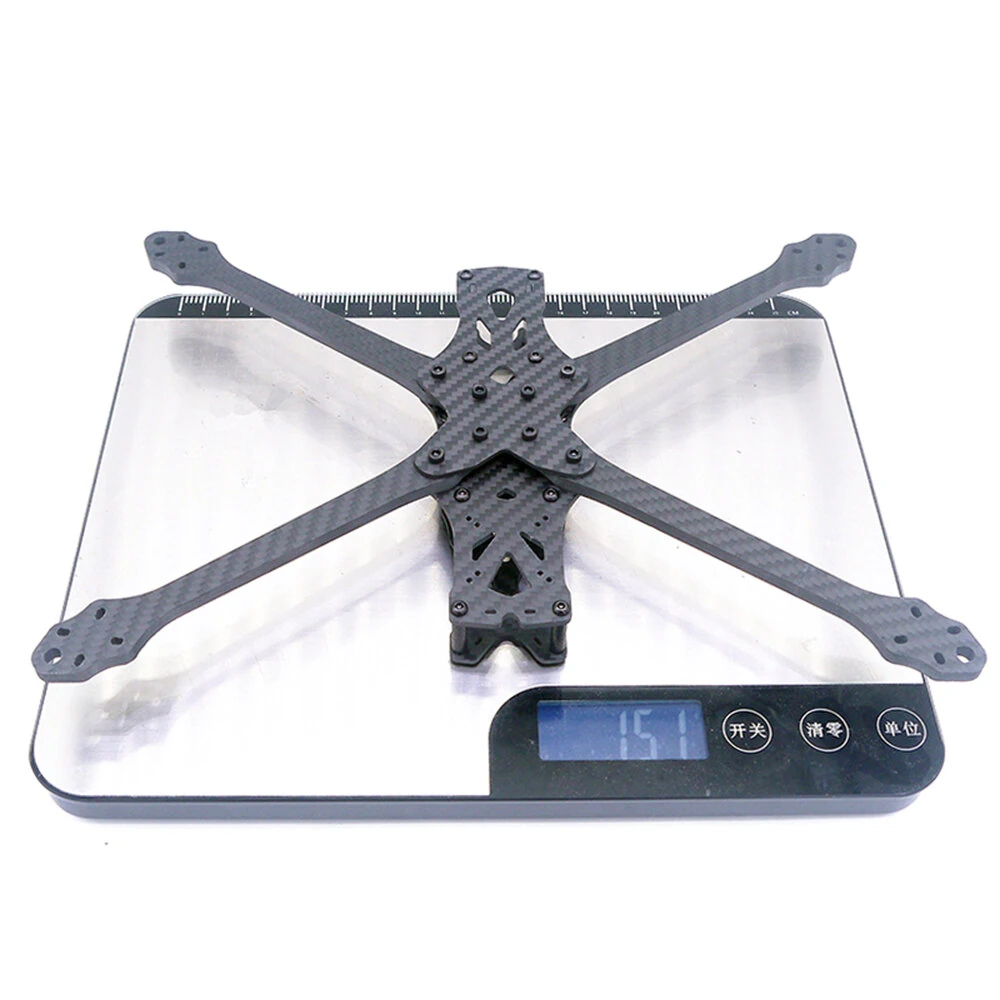

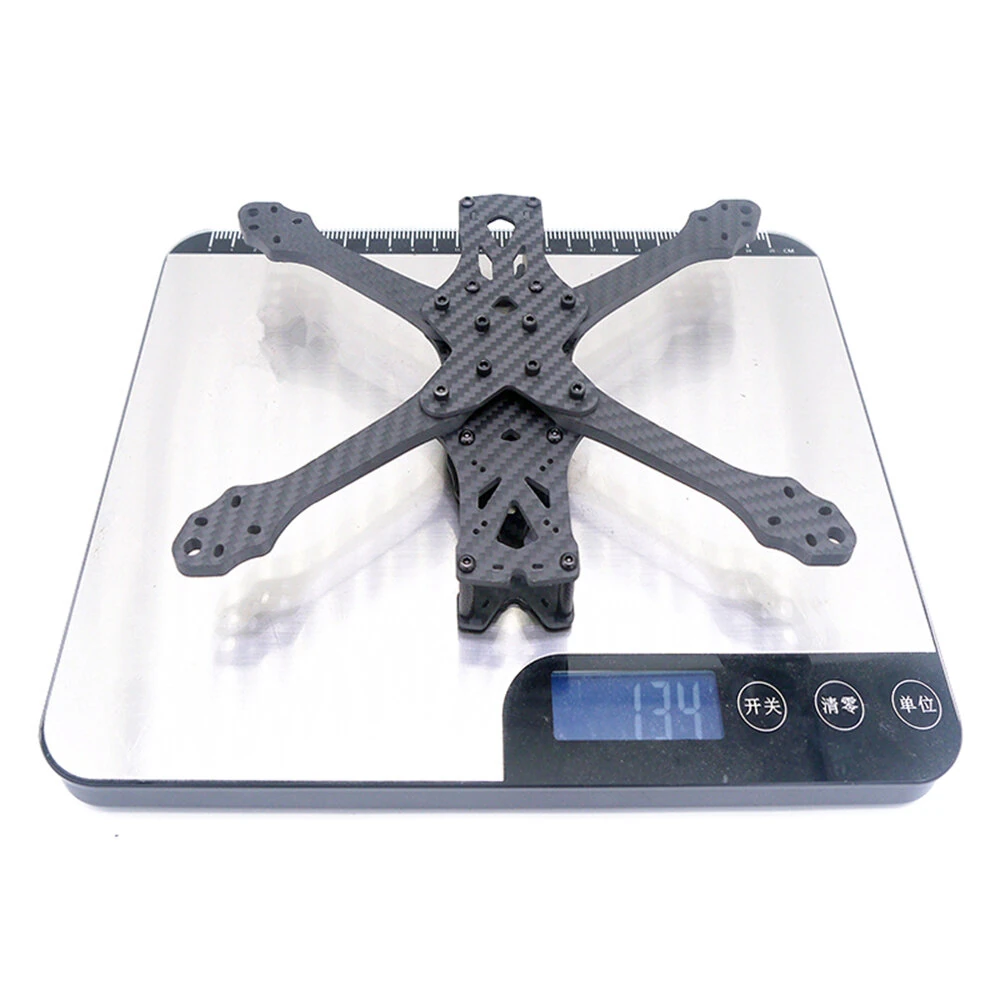

Weight: | Approx.134g | Approx.143g | Approx.151g |
Structure: | X-type split |
Thickness: | Arm 5.5mm, bottom plate 2.5mm, splint 2.5mm, upper plate 2.0mm, side plate 2.0mm |
Applicable Propeller Size: | 5-5.1 Inch | 6 Inch | 7 Inch |
FC Mounting Hole: | 20*20mm（M3），30.5*30.5mm（M3） |
VTX Mounting Hole: | 20*20mm（M2），25.5*25.5mm（M2） |
Camera Installation Width: | 20mm/19mm |
Internal Height: | Approx.20-28mm |
Motor Mounting Hole: | 16*16mm（M3），19mm*19mm（M3） |
Compatible VTX: | DJI O3 Air Unit/VISTA Sky Unit/Analog, etc. |
Sheet Material: | 3K（T700） |
Remarks | APEX X series (5-inch/6-inch/7-inch), only the arm length is different, the body size is the same |
Features:
1. Versatile Prop Compatibility: Supports prop sizes of 5-5.1 inch (X5), 6 inch (X6), and 7 inch (X7), catering to various racing needs and preferences.
2. Optimized Weight Distribution: With weights of 134g (X5), 143g (X6), and 151g (X7), the frames ensure optimal balance and handling during high-speed flights.
3. Integrated Camera Mounts: Features versatile camera installation depths of 20mm/19mm, supporting different camera setups for enhanced FPV experiences.
4. Easy Assembly and Maintenance: Pre-drilled holes for flight controllers and motor mounts ease the assembly process, ensuring quick setup and easy maintenance.
Â
Recommend Parts: ( NOT Included)
FC & ESC:Â 20x20mm SpeedyBee F405 Mini F4 /Â 30.5x30.5mm SpeedyBee F405 V4
Camera:Â CADDX Ratel Pro 1/1.8" Inch 1500TVL
Brushless Motor:Â MAMBA TOKA 2306.5 1650KV 1770KV 4-6S 2770KV 3-4S / Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KV
Propeller: 6 Pairs Gemfan 5128 5.1x2.8 5.1 Inch 3-Blade PC Propeller / Gemfan F7036 7inch 3-Blade / 2-Blade Foldable Propeller
Package included:
1x APEX X5/APEX X6/APEX X7 Frame
