Notice:
1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.
2. It Comes unassembled. Need build by buyers.
Specifications:Â
Brand:Â TEOSAW
Model:Â APEX DC5/DC7
Item Name: 5 Inch/7 Inch Frame Kit
Model: | APEX DC5 | APEX DC7 |
Wheelbase: | 245mm | 340mm |
Appearance Size: | 187mm x 230mm x 35mm | 222mm x 309mm x 35mm |

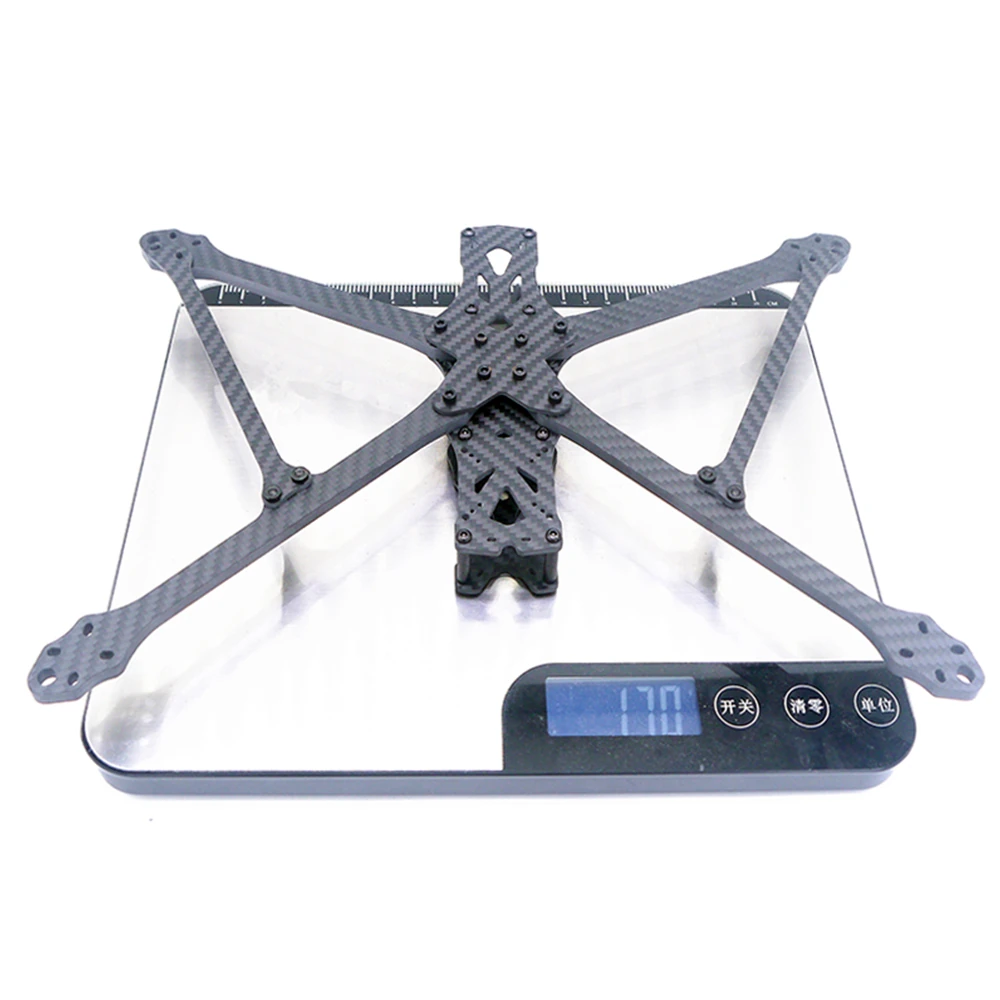

Weight: | Approx.138g | Approx.170g |
Structure: | DC Structure |
Thickness: | Arm 5.5mm, Bottom Plate 2.5mm, Splint 2.5mm, Upper Plate 2.0mm, Side Plate 2.0mm |
Applicable Propeller Size: | 5-5.1 inch | 7 inch |
Flight Controller Mounting Hole: | 20*20mm（M3），30.5*30.5mm（M3） |
VTX Mounting Hole: | 20*20mm（M2），25.5*25.5mm（M2） |
Camera Installation Width: | 20mm/19mm |
Internal Height: | 约20-28mm |
Motor Installation Mounting Hole: | 16*16mm（M3），19mm*19mm（M3） |
Compatible VTX: | DJI O3 Air Unit/VISTA Sky Unit/Analog, etc. |
Sheet Material: | 3K（T700） |

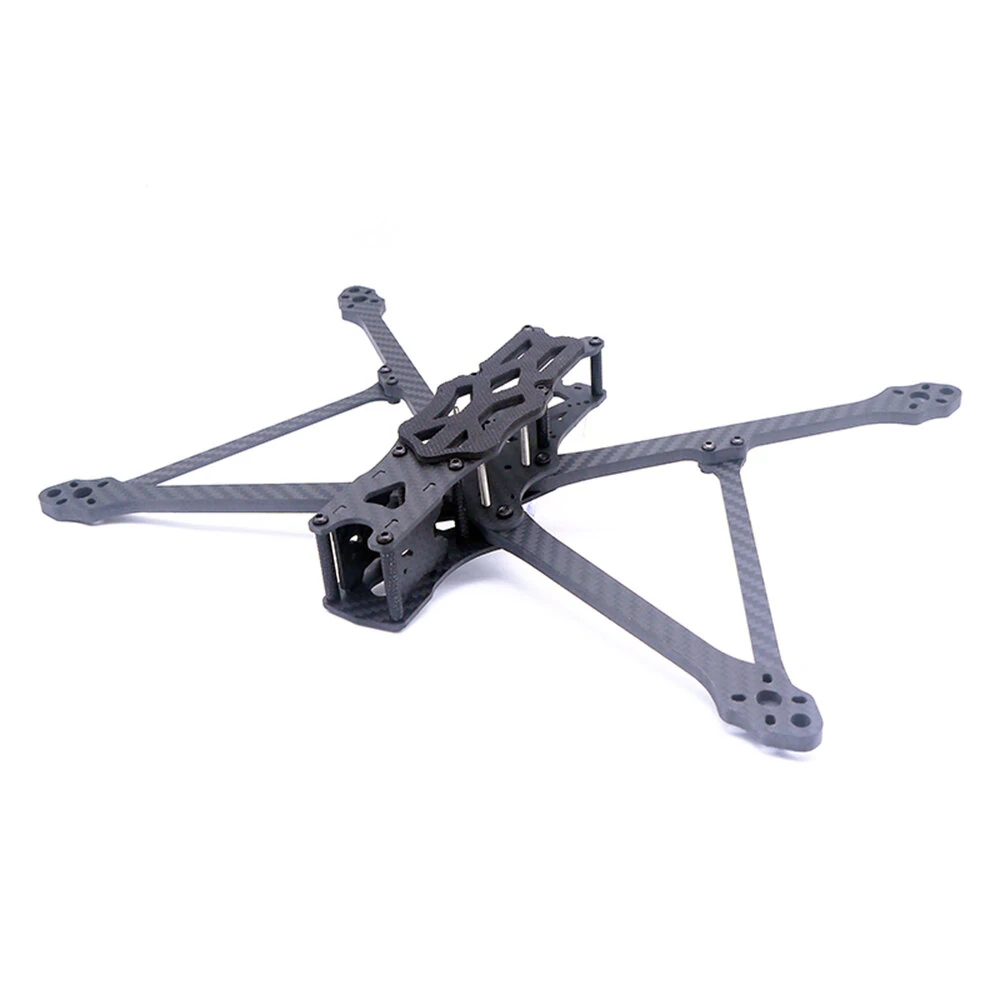

Remarks | Only APEX DC7-inch is equipped with a reinforcement |
Â
Feature:
1. Lightweight and Portable: Weighing approximately 138g/170g, the DC5/DC7 drone frame is incredibly lightweight, enabling easy portability and efficient flights.
2. Versatile Camera Mount: Equipped with a 20mm/19mm camera mount, providing versatility for different camera setups and optimal viewing angles.
3. Easy Installation: Features multiple mounting holes and an internal height of 20-28mm, allowing easy installation of various electronics and flight controllers.
4. Perfect Compatibility: Compatible with DJI O3 Air Unit and VISTA, designed to fit motors ranging from 5-7 inches, ensuring seamless integration with popular drone components.
Recommend Parts: ( NOT Included)
FC & ESC: 25.5*25.5mm SpeedyBee F405 AIO Stack / 30.5x30.5mm SpeedyBee F405 V4
Camera:Â CADDX Ratel Pro 1/1.8" Inch 1500TVL
Brushless Motor:Â MAMBA TOKA 2306.5 1650KV 1770KV 4-6S 2770KV 3-4S / Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KV
Propeller: 6 Pairs Gemfan 5128 5.1x2.8 5.1 Inch 3-Blade PC Propeller / Gemfan F7036 7inch 3-Blade / 2-Blade Foldable Propeller
Package included:
1x APEX DC5/APEX DC7 Frame
