| Aircraft |
Takeoff Weight |
724 g |
| Dimensions |
Folded (without propellers):
214.19×100.63×89.17 mm (L×W×H)
Unfolded (without propellers):
266.11×325.47×106.00 mm (L×W×H) |
| Max Ascention Speed |
10 m/s |
| Max Descent Speed |
10 m/s |
| Max Horizontal Speed |
At sea level, in windless conditions: 21 m/s*
At sea level, with 6 m/s taiIwind, while flying in the same direction as the wind: 27 m/s* |
| Max Takeoff Altitude |
6000 m |
| Max Flying Time |
45 minutes |
| Max Hovering Time |
41 minutes |
| Max Flying Distance |
32 km |
| Max Wind Speed Resistance |
12 m/s |
| Max Pitch Angle |
36° |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
| Global Navigation SateIIite System |
GPS + Galileo + BeiDou |
| Hovering Accuracy Range |
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with sateIIite positioning)
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with sateIIite positioning) |
| Internal Storage |
42 GB |
| Class |
C1 (EU) |
| Camera |
Image Sensor |
Wide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels
Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels |
| Lens |
Wide-Angle Camera
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/1.8
Focus: 0.5 m to ∞
Medium Tele Camera
FOV: 35°
Format Equivalent: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞ |
| ISO Range |
Video
Normal:
100-12800 (Normal)
100-3200 (D-Log M)
100-3200 (HLG)
Slow Motion:
100-6400 (Normal)
100-3200 (D-Log M)
100-3200 (HLG)
100-6400 (12 MP)
100-3200 (48 MP and 50 MP) |
| Shutter Speed |
Wide-Angle Camera
12MP Photo: 1/8000-2s (2.5-8 s for simulated long exposure)
50MP Photo: 1/8000-2s
Medium Tele Camera
12MP Photo: 1/16000-2s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2s |
| Max Image Size |
Wide-Angle Camera: 8192×6144
Medium Tele Camera: 8064×6048 |
| Still Photography Modes |
Wide-Angle Camera
Single Shot: 12 MP and 50 MP
Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s
Medium Tele Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s |
| Photo Format |
JPEG/DNG (RAW) |
| Video Resolution |
Wide-Angle Camera/Medium Tele Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/120*fps
FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps |
| Video Format |
MP4 (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max Video Bitrate |
H.264/H.265: 130 Mbps |
| Supported File System |
exFAT |
| Color Mode and Sampling Method |
Wide-Angle/Medium Tele Camera
Normal (FHD/2.7K): 8-bit 4:2:0 (H.264)
Normal (FHD/2.7K): 10-bit 4:2:0 (H.265)
HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265)
Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265) |
| Digital Zoom |
Wide-Angle Camera: 1-2.9x
Medium Tele Camera: 3-9x |
| Gimbal |
Stabilization |
3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical Range |
Tilt: -135° to 70°
Roll: -50° to 50°
Pan: -27° to 27° |
| Controllable Range |
Tilt: -90° to 60°
Pan: -5° to 5° |
| Max Control Speed (tilt) |
100°/s |
| Angular Vibration Range |
±0.0037° |

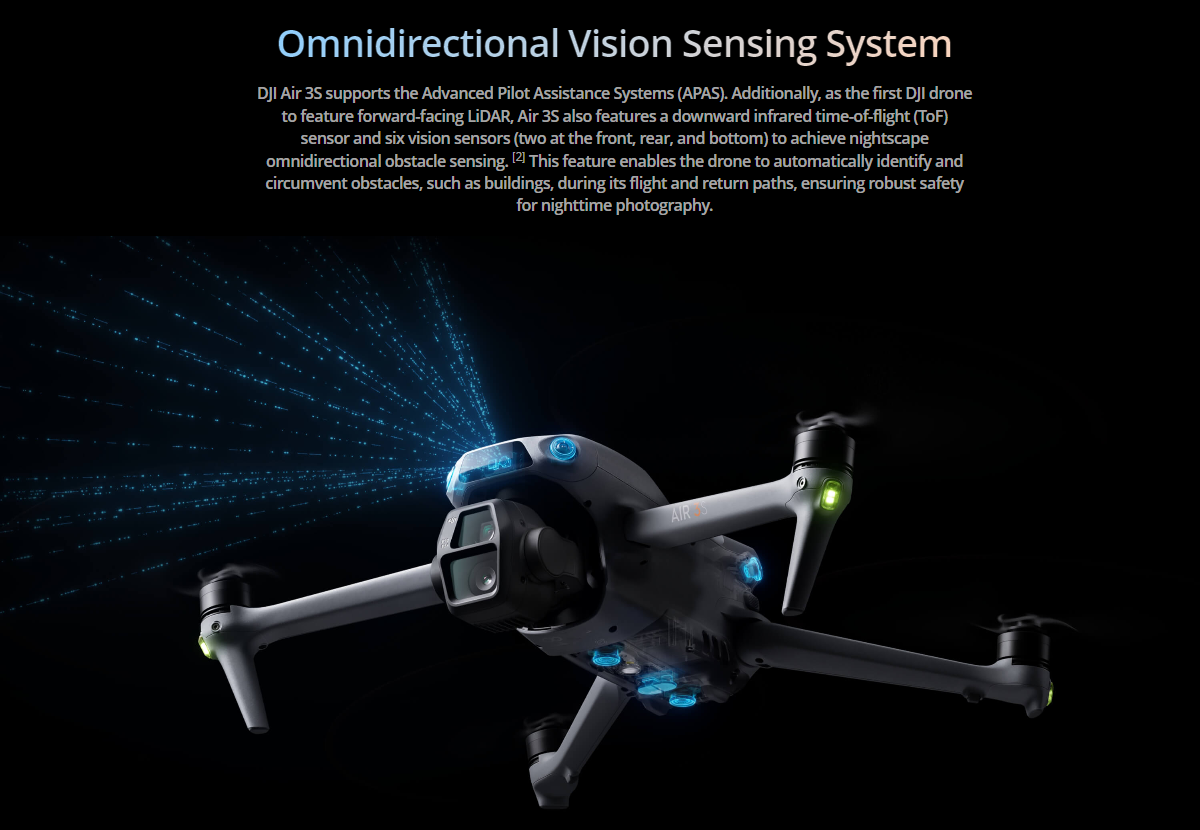

| Sensing |
Sensing Type |
Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft |
| Forward |
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 15 m/s
FOV: Horizontal 90°, Vertical 72° |
| Backward |
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72° |
| Lateral |
Measurement Range: 0.5-30 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72° |
| Upward |
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 72°, Left and Right 90° |
| Downward |
Measurement Range: 0.3-14 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 106°, Left and Right 90° |
| Operating Environment |
Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 1)
Downward:
Surfaces with discernible patterns,diffuse reflectivity > 20% (e.g.walls, trees, people), and adequate lighting (lux > 1) |
| 3D Infrared Sensor |
Forward-Facing LiDAR
Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%)
FOV: Up and Down 60°, Left and Right 60°
Downward-Facing Infrared Sensor
Measurement Range: 0.3-8 m (reflectivity > 10%)
FOV: Front and Back 60°, Left and Right 60° |
| Video Transmission |
Video Transmission System |
O4 |
| Live View Quality |
Remote Controller:
1080p/30fps, 1080p/60fps |
| Operating Frequency |
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz |
| Transmitter Power (EIRP) |
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE) |
| Max Transmission Distance (unobstructed, free of interference) |
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km |
| Max Transmission Distance (unobstructed, with interference) |
Strong Interference: Urban landscape, approx. 1.5-4 km
Medium Interference: Suburban landscape, approx. 4-10 km
Low Interference: Suburb/Seaside, approx. 10-20 km |
| Max Transmission Distance (obstructed, with interference) |
Low Interference and Obstructed by Buildings:Approx.0-0.5 km
Low Interference and Obstructed by Trees:Approx.0.5-3 km |
| Max Download Speed |
O4:
10 MB/s (with DJI RC-N3)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s* |
| Lowest Latency |
Aircraft + Remote Controller: Approx. 120 ms |
| Antenna |
6 antennas, 2T4R |
| Wi-Fi |
Protocol |
802.11 a/b/g/n/ac |
| Operating Frequency |
2.400-2.4835 GHz
5.725-5.850 GHz |
| Transmitter Power (EIRP) |
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE) |
| Bluetooth |
Protocol |
Bluetooth 5.2 |
| Operating Frequency |
2.400-2.4835 GHz |
| Transmitter Power (EIRP) |
< 10 dBm |
| Battery |
Capacity |
4276 mAh |
| Weight |
Approx. 247 g |
| Nominal Voltage |
14.6 V |
| Max Charging Voltage |
17.2 V |
| Type |
Li-ion 4S |
| Energy |
62.5 Wh |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
Approx. 80 minutes (with DJI 65W Portable Charger)
Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub) |
| Charger |
Input |
DJI 65W Portable Charger:
100-240 V (AC), 50-60 Hz, 2 A
DJI 100W USB-C Power Adapter:
100-240 V (AC), 50-60 Hz, 2.5 A |
| Output |
DJI 65W Portable Charger:
USB-C
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A
5 V, 2 A
DJI 100W USB-C Power Adapter:
Max 100 W (total) |
| Rated Power |
DJI 65W Portable Charger: 65 W
DJI 100W USB-C Power Adapter: 100 W |
| Battery Charging Hub |
Input |
USB-C: 5-20 V, max 5 A |
| Output (power accumulation) |
Battery Port: 12-17.2 V, 3.5 A |
| Output (charging) |
Battery Port: 12-17.2 V, max 5 A |
| Output (USB) |
USB-C:
5 V, 3 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 4.1 A |
| Charging Type |
Three batteries charged in same time |
| Compatibility |
DJI Air 3 Intelligent Flight Battery
DJI Air 3S Intelligent Flight Battery |
| Car Charger |
Input |
Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC) |
| Output |
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A |
| Rated Power |
65 W |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| DJI RC-N3 Remote Controller |
Max Operating Time |
Without Charging Any Mobile Device: 3.5 hours
When Charging a Mobile Device: 1.5 hours |
| Max Supported Mobile Device Size |
180×86×10 mm (L×W×H) |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
2 hours |
| Charging Type |
It is recommended to use a 5V/2A charger. |
| Battery Capacity |
9.36 Wh (3.6 V, 2600 mAh) |
| Weight |
Approx. 320 g |
| Dimensions |
104.2×150×45.2 mm (L×W×H) |
| Supported Mobile Device Port Type |
Lighting, USB-C, Micro-USB |
| Video Transmission Operating Frequency |
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz |
| Video Transmission Transmitter Power (EIRP) |
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC) |
