Specification:

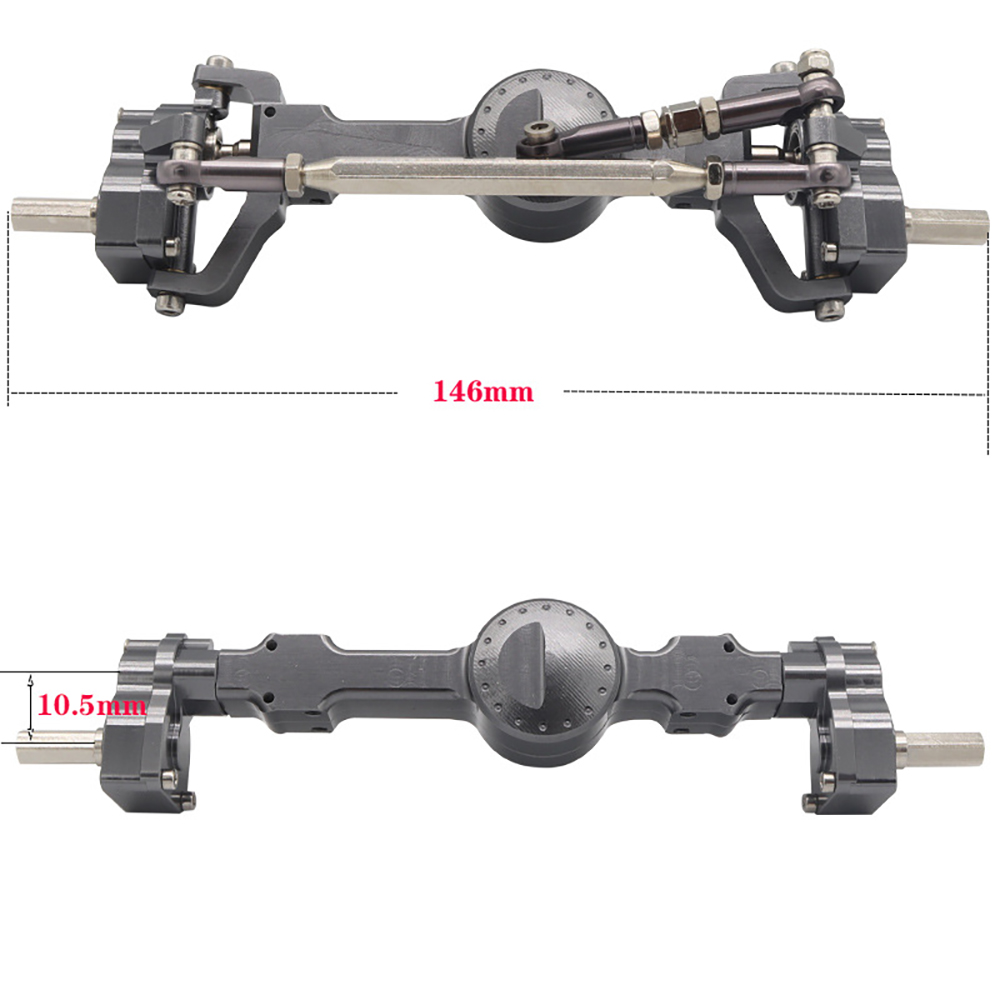

Total Length (Distance Between The Ends Of The Threads):146mm
Bridge Egg Height (Upper And Lower Width, Excluding Reinforcement Brackets):22.5mm
Input Shaft Diameter (Diameter Of The Junction Of The Small Bevel Gear And The Transmission Shaft):3mm
Output Shaft Diameter (Diameter Of The Threads At Both Ends):5mm
Servo Seat Installation Width (Front Bridge):56mm
Front Door Bridge Height:41mm
Rear Door Bridge Height:27mm
Product Net Weight:185g

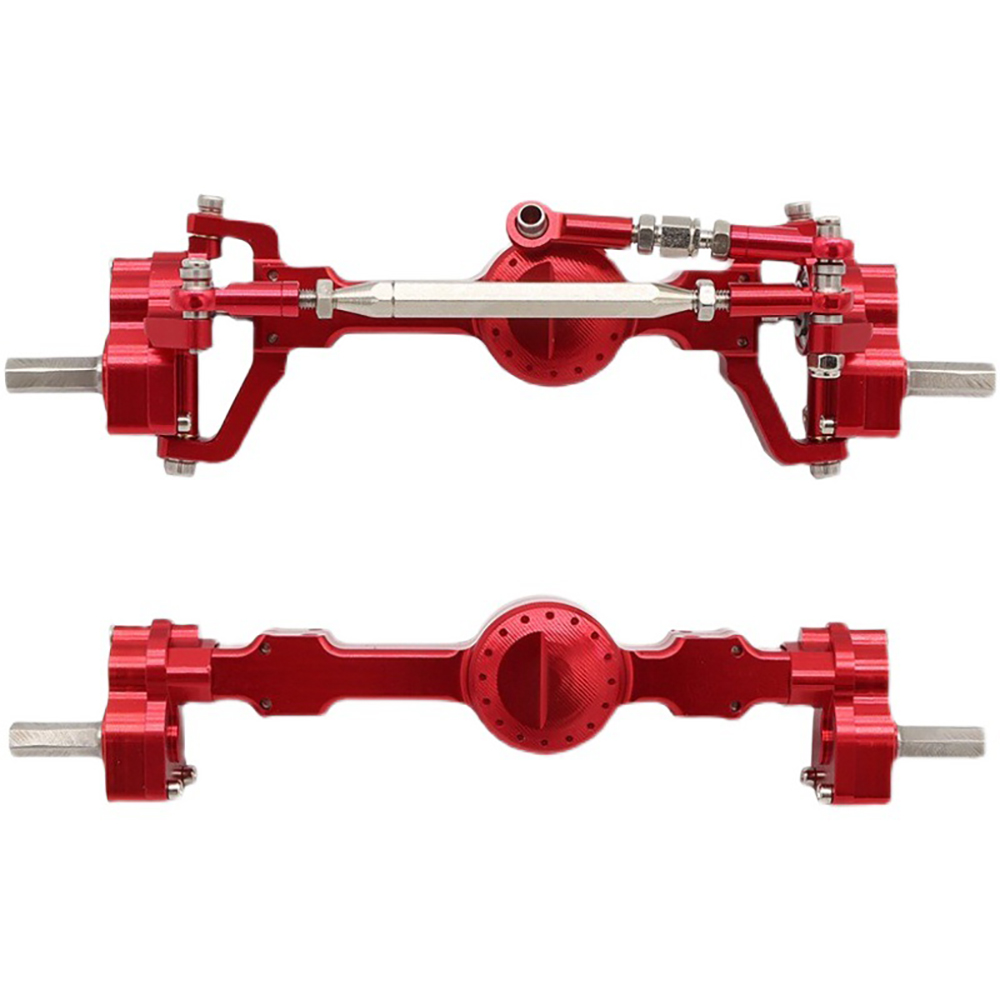

Color:Red/Black/Silver/Titanium

Features:
- The entire axle adopts high-speed bearings and steel gear transmission, which is very smooth.
- It is about 10.5mm higher than the original axle, which makes your car's climbing performance much better and more fun.
- Applicable to MN D90 FJ45 MN40 MN45 MN90 MN91 MN96 MN99 MN99S MN98.
- It is also suitable for WPL series B14 B14K B16 B16K B24 B24K B36 B36K C14 C14K C24 C24K C34 C34K C-34KM C44KM C24-1 C24-1K front and rear axle modification.

Package Included:

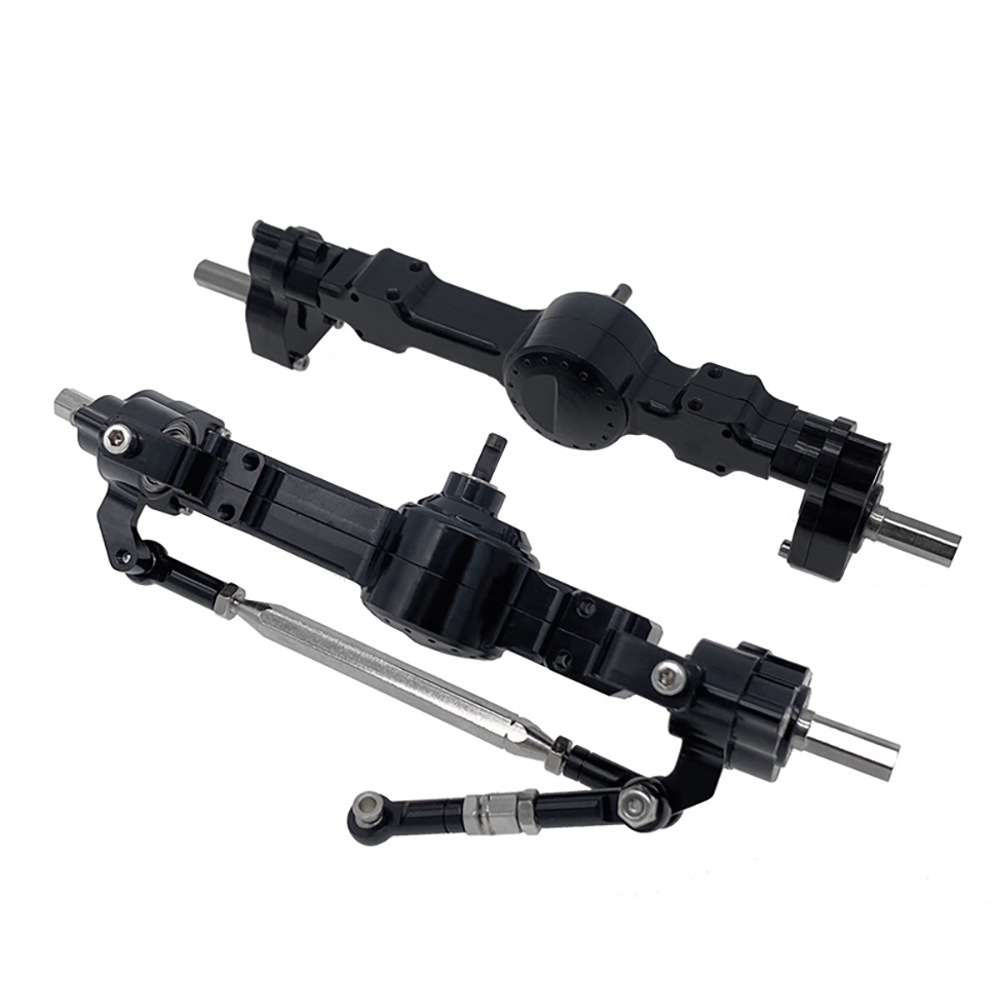

1 Set x MN Metal Portal Axle
