Description:
Item Brand:Surpass Hobby

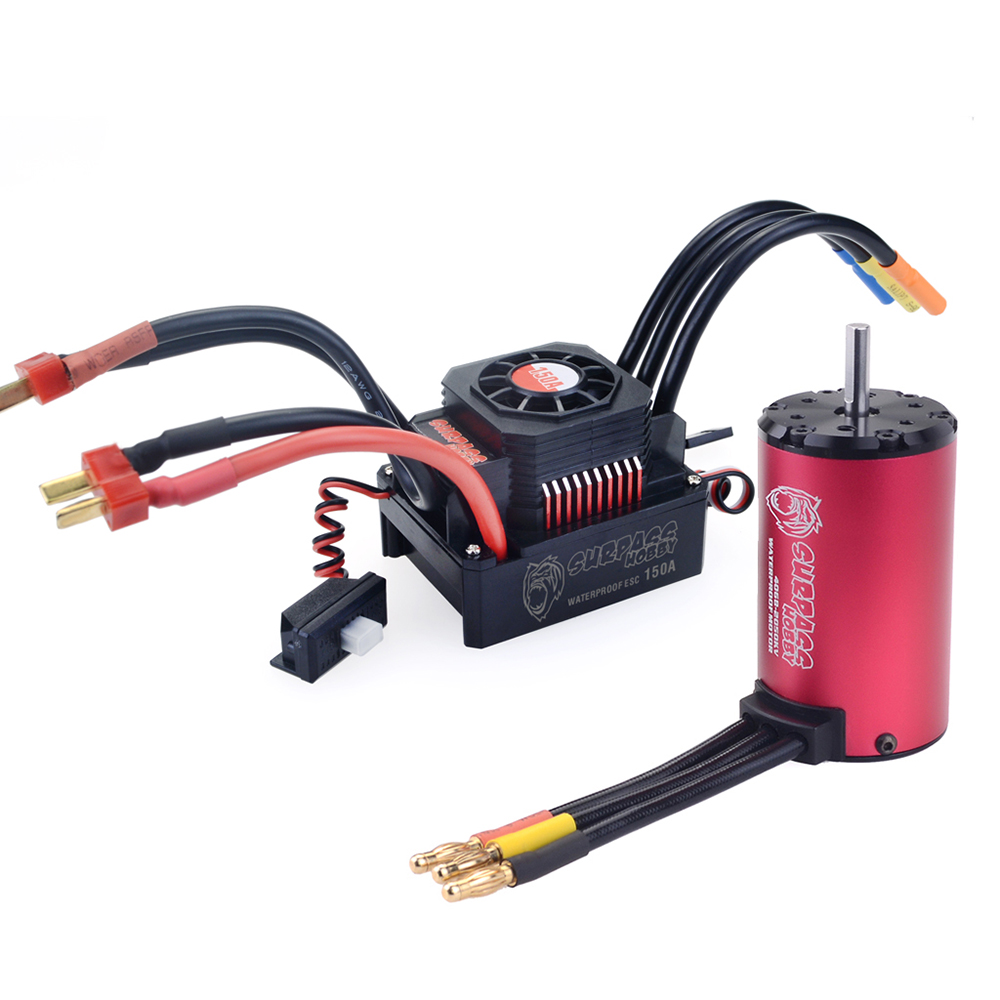

Item Number:4076 2250KV Brushless Motor with 150A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 76mm,diameter 40mm,shaft diameter is 3.175mm,length of extended shaft is 18mm
The Size of the ESC:160*100*62mm
The Weight of the Motor/ESC:About 423g/148g
Fit For:1/10 1/8  brushless rc cars

The Specification of the Motor:
KV:2250KV
Watts:2800
Max Voltage:<18V
Max Amps:155A
Rotor Poles:4
IO:2.5A
Resistance:0.0066
Max RPM:50000
Connector:4.0mm gold

The Specification of the ESC:
Cont.Current:150A
Burst Current:720A
Motor Type:Sensorless Brushless Motor
For 4s Lipo or 12 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2500
For 6s lipo or 18 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <2500
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2000
Suitable Car:1/8 car
Resistance:0.00030ohm
Battery:3-6 cells lipo/9-18 cells NiMH
BEC Output:6.1V/3A(switch mode)
For the esc manual,please click here

Features:Package included:

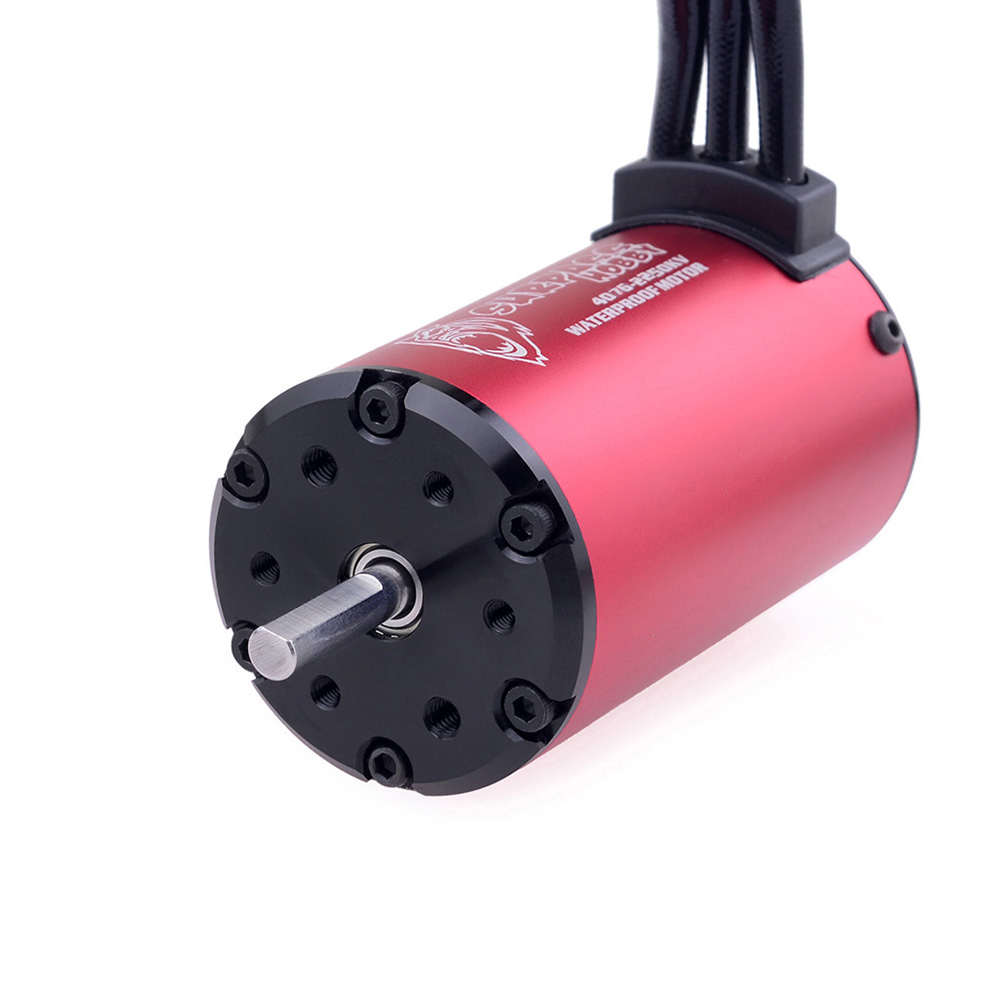

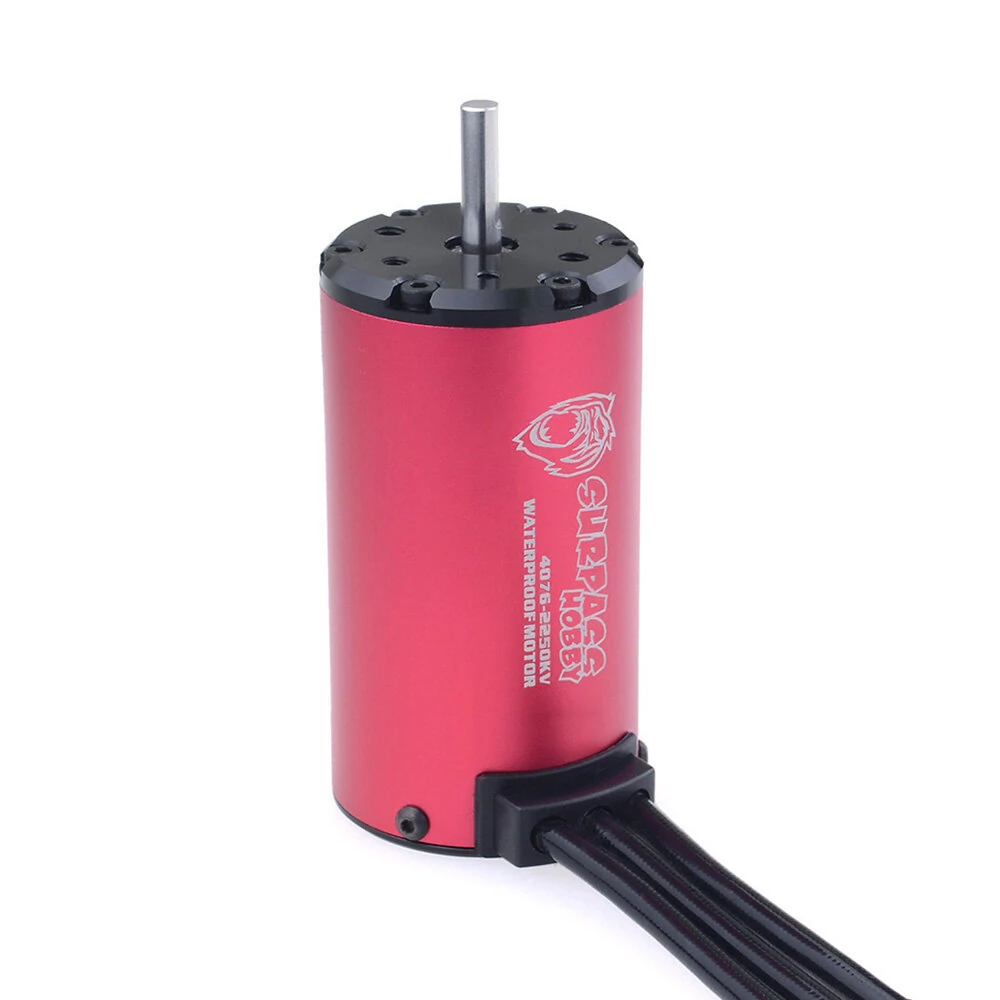

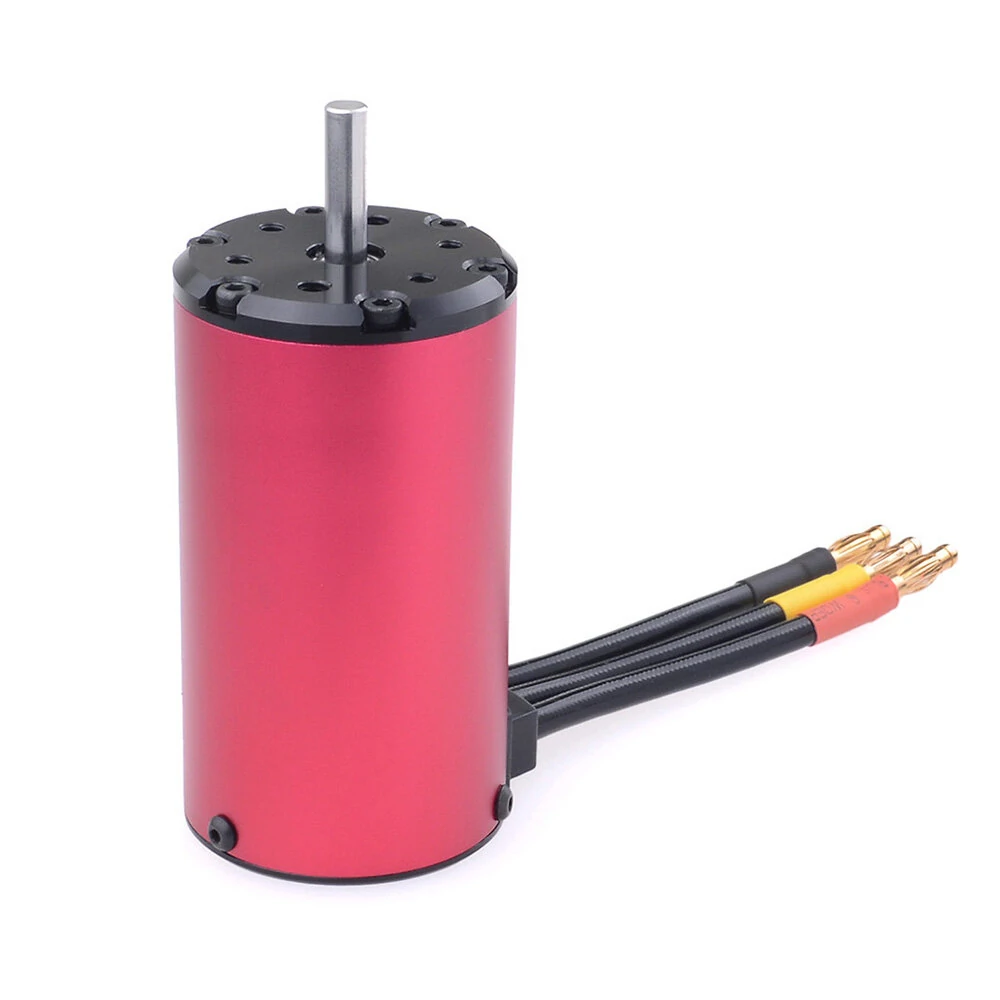

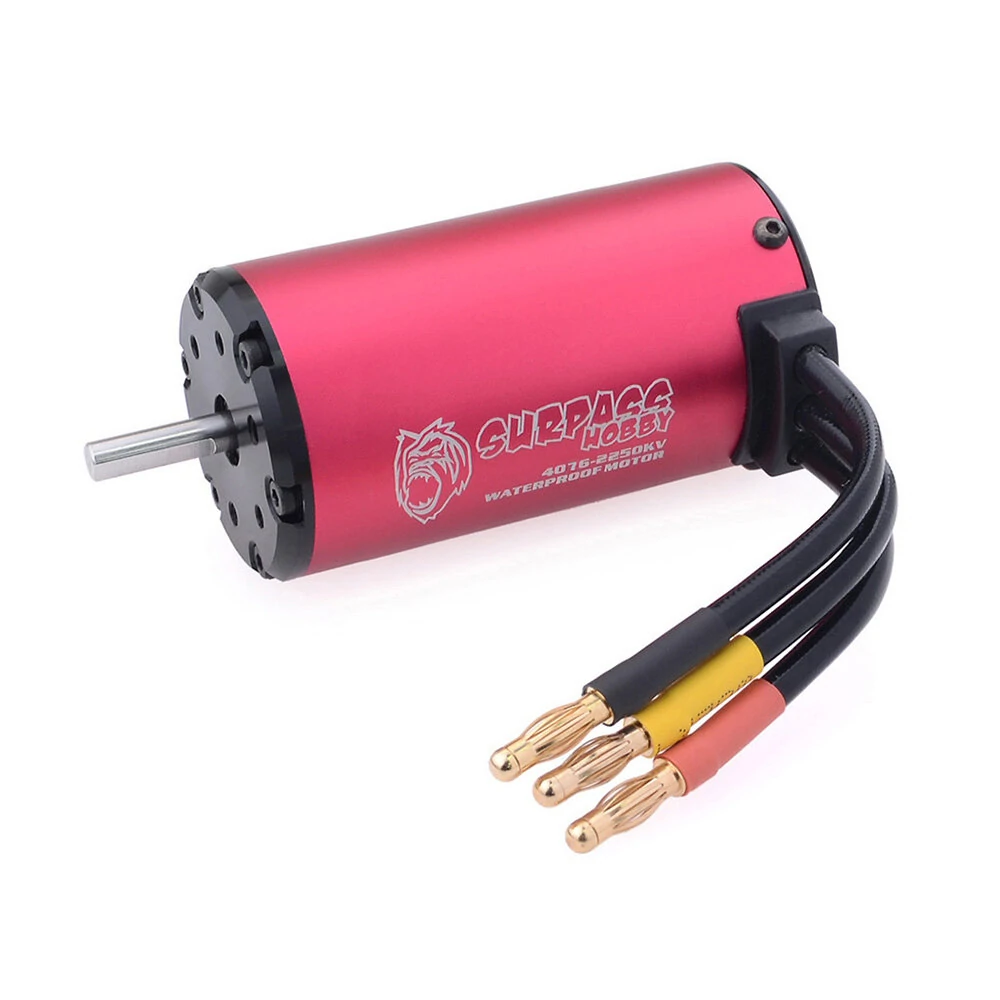

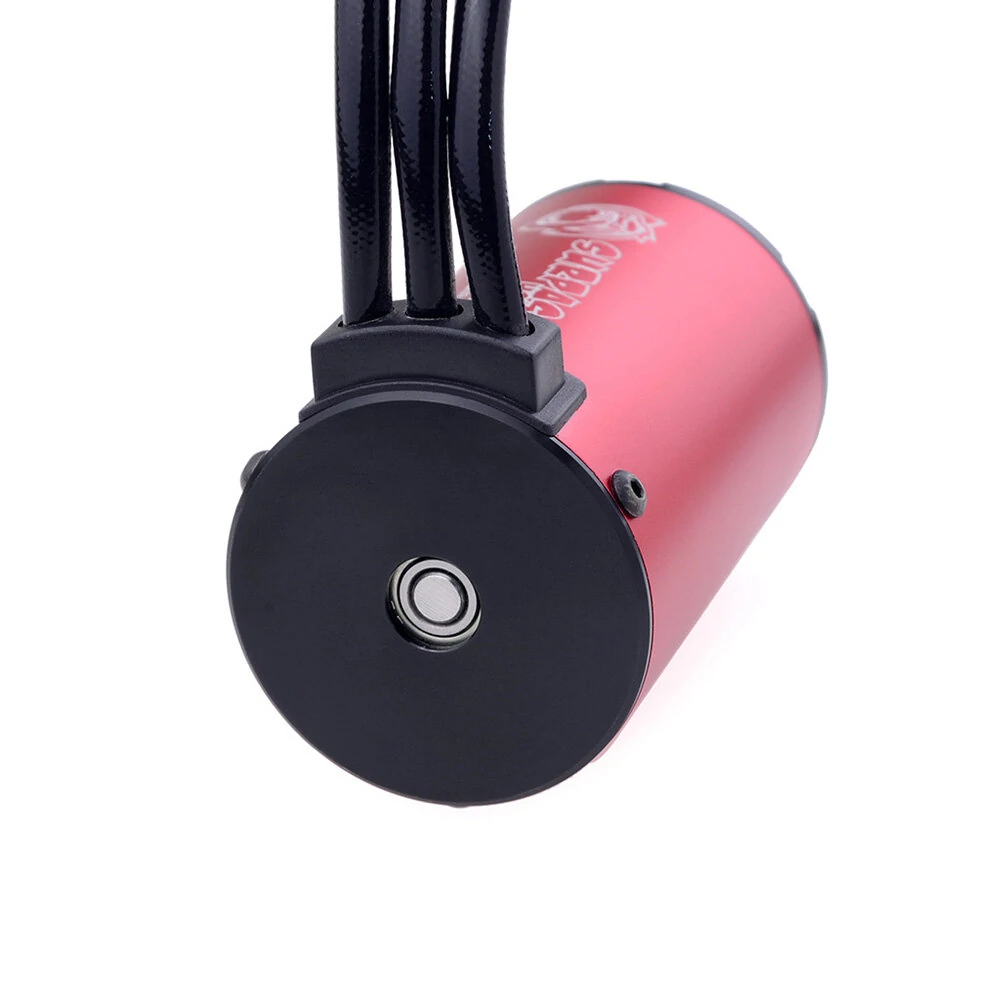

1X 4076 2250KV Brushless Motor

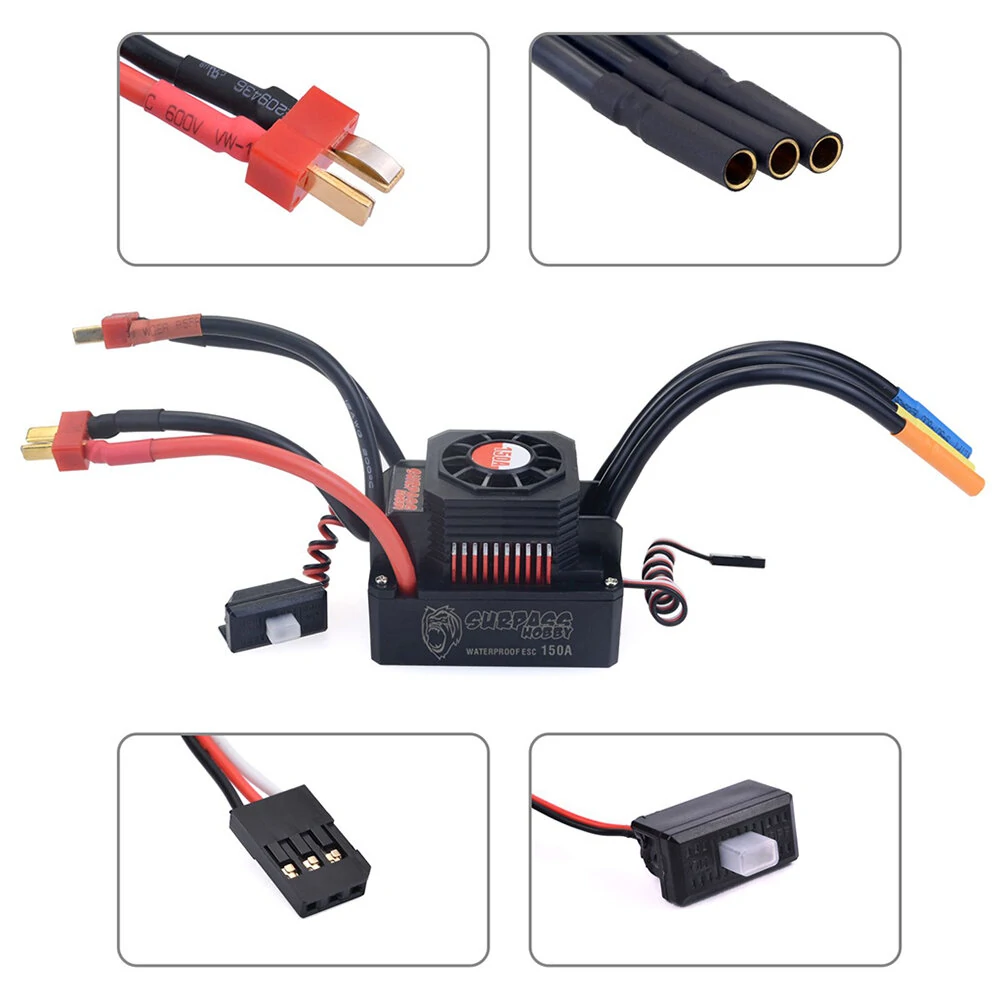

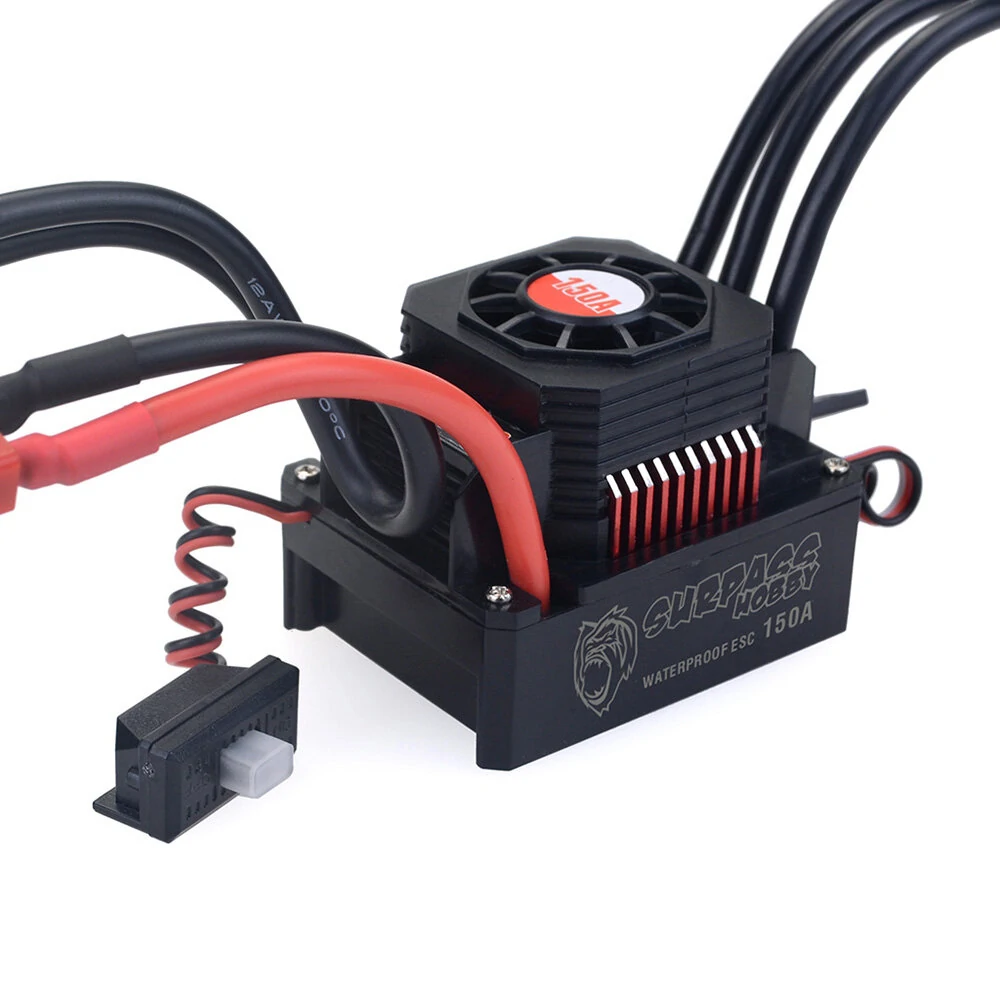

1X 150A ESC
1X Manual
