Specifications:

Brand: SURPASS-HOBBY

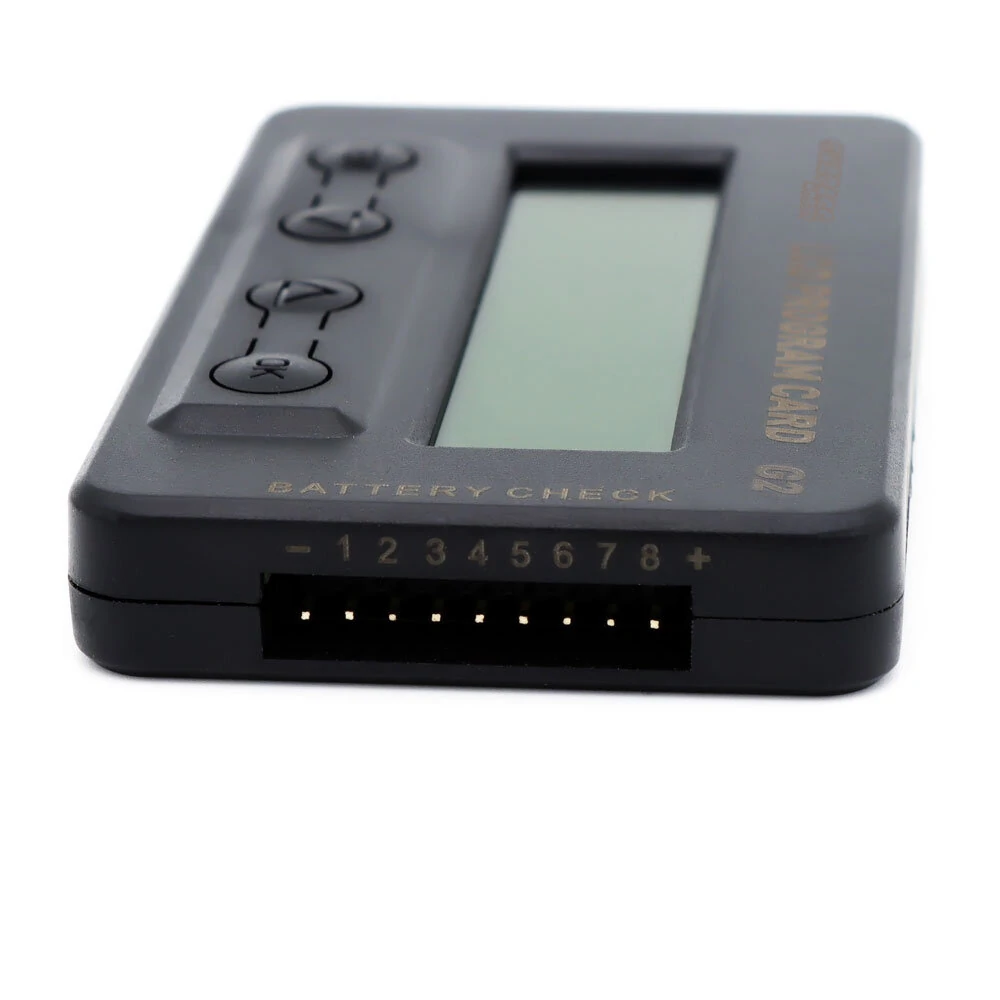

Item Name: LCD Program Box G2

Dimensions: 84 x 49 x 11.5 mm

Weight: 40g

Power Supply: DC 5~12.6V

Application: Support FLIER Series ESC for RC Airplane

Features:

1. Working as an individual device to set the parameters for the ESC.

2. Working as a LiPo battery voltmeter to measure the voltage of the whole battery pack and each cell.

3. For the SURPASS-HOBBY ESC with data returning feature, it can display real-time data including: voltage, current, input throttle, output throttle, RPM, battery power, MOS temperature and motor temperature.

4. For the SURPASS-HOBBY ESC with data logging feature, it can read the data including: maximum RPM, minimum voltage, maximum current, external temperature, and maximum temperature.

5. PWM throttle signal detection: Identify and display the input throttle pulse width and frequency.

6. ESC/Servo Tester: It works like remote control to adjust the speed for ESC/servo by press the program box's button.

English Manual, Click Here

Package Included:

1 x SURPASS-HOBBY LCD Program Box G2
