Description:

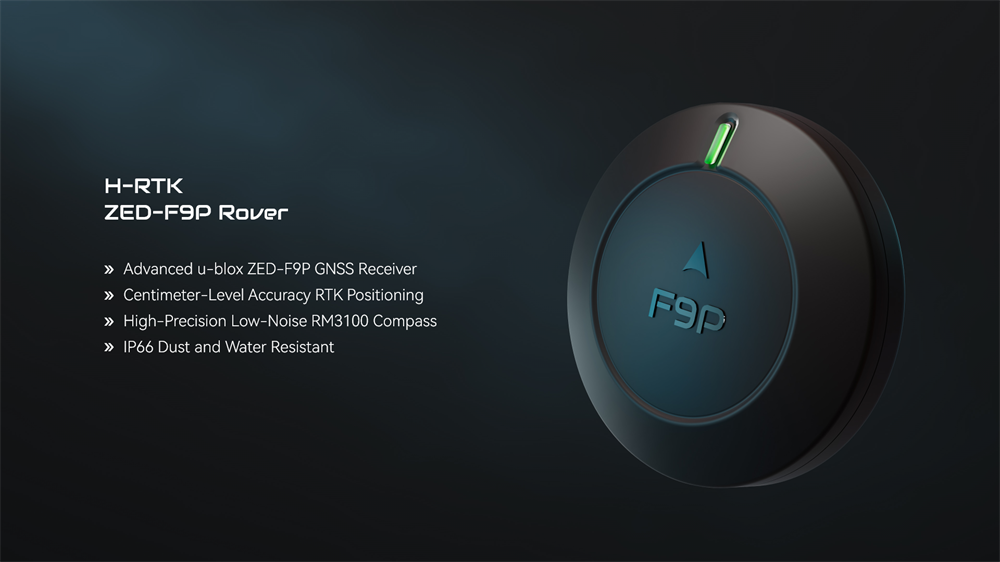

The H-RTK ZED-F9P Rover is an upgraded version of the original H-RTK F9P Rover. This RTK GPS features the u-blox ZED-F9P GNSS receiver, RM3100 Compass, and a tri-colored LED indicator, providing precise positioning and orientation data. It also boasts an IP66 rating, offering robust protection against dust and water, making it suitable for challenging environments.
This RTK GPS offers multi-band RTK capabilities with rapid convergence times and consistent performance. It supports concurrent reception of GPS (L1 & L2), GLONASS, Galileo, and BeiDou signals, ensuring reliable and precise positioning. This RTK GPS delivers centimeter-level accuracy with the use of a base station or NTRIP service. Additionally, there is also a DroneCAN option that offers MCU, IMU, barometer, and robust communication and integration for advanced UAV systems.
The high-precision PNI RM3100 compass ensures accurate orientation and stability, offering exceptional reliability, making it ideal for demanding UAV applications. It provides high resolution, low power consumption, large signal noise immunity, a large dynamic range, and high sampling rates. Its measurements are stable over temperature and inherently free from offse drift.
Features:
1. Advanced GNSS Receiver: Equipped with the high precision u-blox ZED-F9P GNSS receiver.
2. Integrated RM3100 Compass: Accurate orientation accuracy and stability.
3. High-Gain Antenna: Integrated large high-gain dual-band stacked patch antenna for enhanced signal reception across GNSS frequencies.
4. Carefully Design: IP66-rated for protection against dust and water, suitable for harsh environments.
5. Advanced Filtering & Amplification: Utilized Coupler + SAW + LNA + Coupler architecture, ensuring superior signal clarity and interference rejection.
6. Robust EMI Shielding: Ensures consistent signal integrity by minimizing the impact of electromagnetic interference.
7. Versatile Installation: Easily mount this GPS on a flat surface or with an elevated mount for optimal positioning.
8. DroneCAN Option: Offers MCU, IMU, barometer, and robust communication for advanced UAV systems.
Specifications:
Product Model | UART 10-Pin (GPS1 Port) | UART 6-Pin (GPS2 Port) | DroneCAN 4-Pin (CAN Port) |
Connector Type | GH1.25 10pin cable | GH1.25 6pin cable | GH1.25 4pin cable |
Applicable Ports | Holybro GPS1 Port | Holybro or Cubepilot GPS2 Port | Flight Controller CAN Port |
Communication Protocol | UART | UART | DroneCAN |
MCU IMU Barometer | N/A | N/A | STM32G4 ICM42688 ICP20100 |
Magnetometer | High precision, Low Noise RM3100 Compass |
Application | Moving Station (Aircraft, Ground Vehicle, Marine Vehicle, etc) |
GNSS Receiver | U-blox ZED-F9P High Precision GNSS Receiver |
GNSS Band | GPS: L1C/A and L2C GLONASS: L1OF and L2OF Galileo: E1-B/C and E5b BeiDou: B1I and B2I QZSS: L1C/A and L2C |
Number of concurrent GNSS | 4 |
Heading accuracy | 0.4 degrees |
Positioning Accuracy | Horizontal & Vertical: RTK 0.01m +1ppm CEP |
Antenna | Dual-Band Stacked Ceramic Patch Antenna ( 47.5*47.5*4mm) 20.5±1dB LNA Gain (typical) |
Antennas Peak Gain (MAX) | L1: 4.0dBi L2:1.0 dBi |
Acquisition | Hot Start: 2s Aided starts: 2s Cold starts: 25s |
Data and Update Rate | RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max |
Maximum altitude | 80,000 m |
Maximum speed | 500 m/s |
Sensitivity | Tracking & Navigation: –167 dBm Cold starts: –148 dBm Hot starts: –157 dBm Reacquisition: –160 dBm |
Timepulse | Configurable from 0.25hz to 10mhz |
Protocols | NMEA、UBX binary、RTCM 3.3 |
Filtering & Amplication | Triple SAW + LNA Filtering for Precise Signal Filtering & Signal Amplification Double Coupler for Efficient Signal Coupling |
Anti-jamming | Active CW Detection and Removal Onboard Band Pass Filter |
Anti-spoofing | Advanced Anti-spoofing Algorithms |
Cable Length | 40cm |
Baud rate: | 115200 5Hz (default) can be set |
Working Temperature | -40 °C to +85 °C |
Working voltage: | 4.75V~5.25V |
Current Consumption | ~250mA |
Dimensions | Diameter: 78mm Height: 22mm |
IP Rating | IP66 |
Weight | 117g |
Package Included:
1x H-RTK ZED-F9P Rover
1x Fixed Carbon Fiber GPS mount
