Tags: HSKRC Butterfly 25 114mm Radstand 2, 5 Zoll Duct Frame Kit für RC Drone FPV Racing
Notice: Comes unassembled. Need build by buyers.Â
Specification:
Brand: HSKRC
Model: Butterfly 25
Frame wheelbase: 114mm
Overall frame size: 91*69mm
Empty weight + full set of prints: 84g
Motor circlip hole position: 4.8mm
Internal space height: 24mm
Top plate thickness: 2mm
Bottom plate thickness: 2.5mm
Flight control hole: 16*16/20*20/25.5*25.5mm
Camera pitch: 19mm
Color: Blue/Black/Brown ( Optional)
Recommend Parts: ( NOT Included)
| FC & ESC | 25.5x25.5mm HAKRC F7 FC AIO 40A BL_ S 2-6S ESC | 20x20mm Jhemcu GHF420AIO BGA F4 FC Built-in 40A BL_S 4In1 ESC |
| Brushless Motor | FlyFishRC Flash 1404 4500KV 3-4S Unibell Motor 1.5mm Shaft | HSKRC 1505Plus 1505 2650KV 4-6S Motor |
| Propeller | GEMFAN D63 Ducted 63mm 3 Blade Propeller | HQProp Duct T63 T63MMX3 63mm 3-Blade Propeller |
| VTX | HGLRC Zeus nano 25/100/200/350mW 5.8Ghz 40CH VTX | 20X20mm EWRF VTX 5.8G 40CH 25/200/650mW VTX |
| FPV Camera | Caddx Ratel 2 1/1.8 Inch Starlight 1200TVL 2.1mm Lens | RunCam Link PhoenixHD Kit |
| Lipo Battery | iFlight FULLSEND 14.8V 850mAh 95C 4S Lipo XT30 | URUAV 22.2V 850mAh 120C 6S LiPo Battery XT30 Plug |

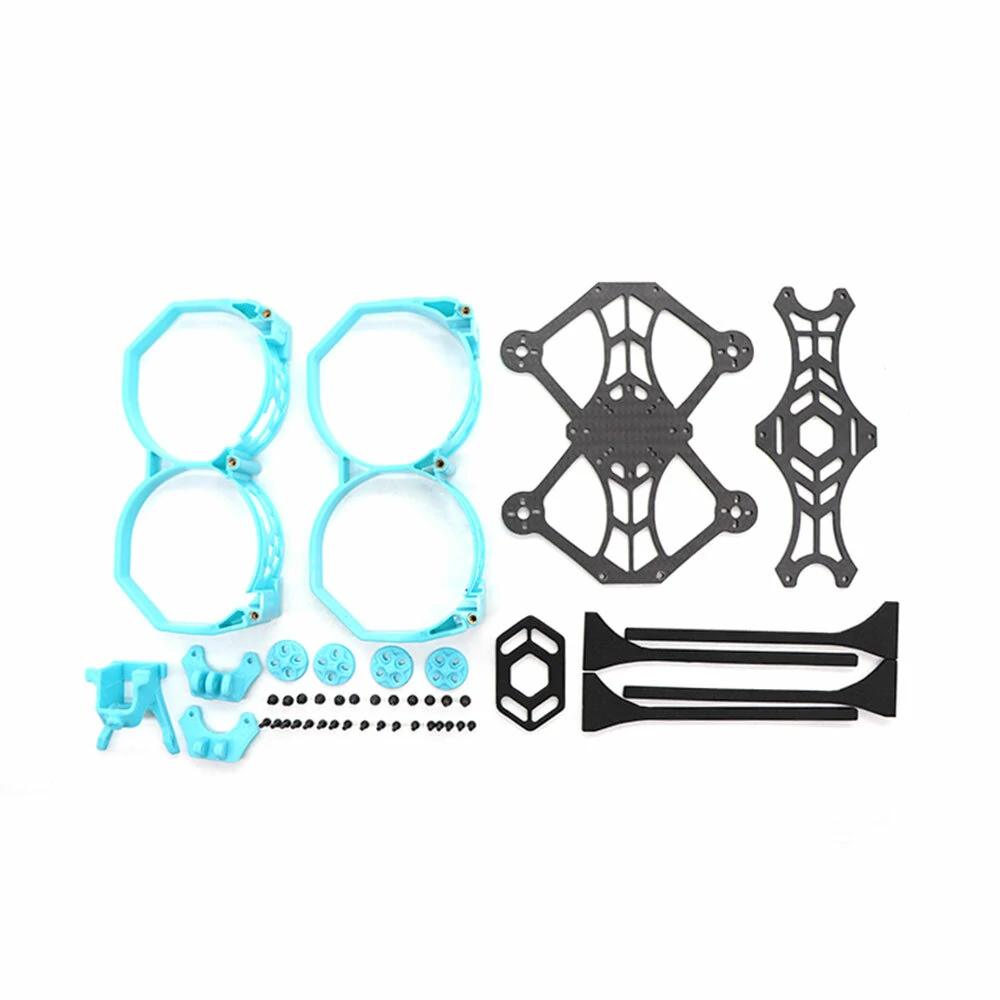

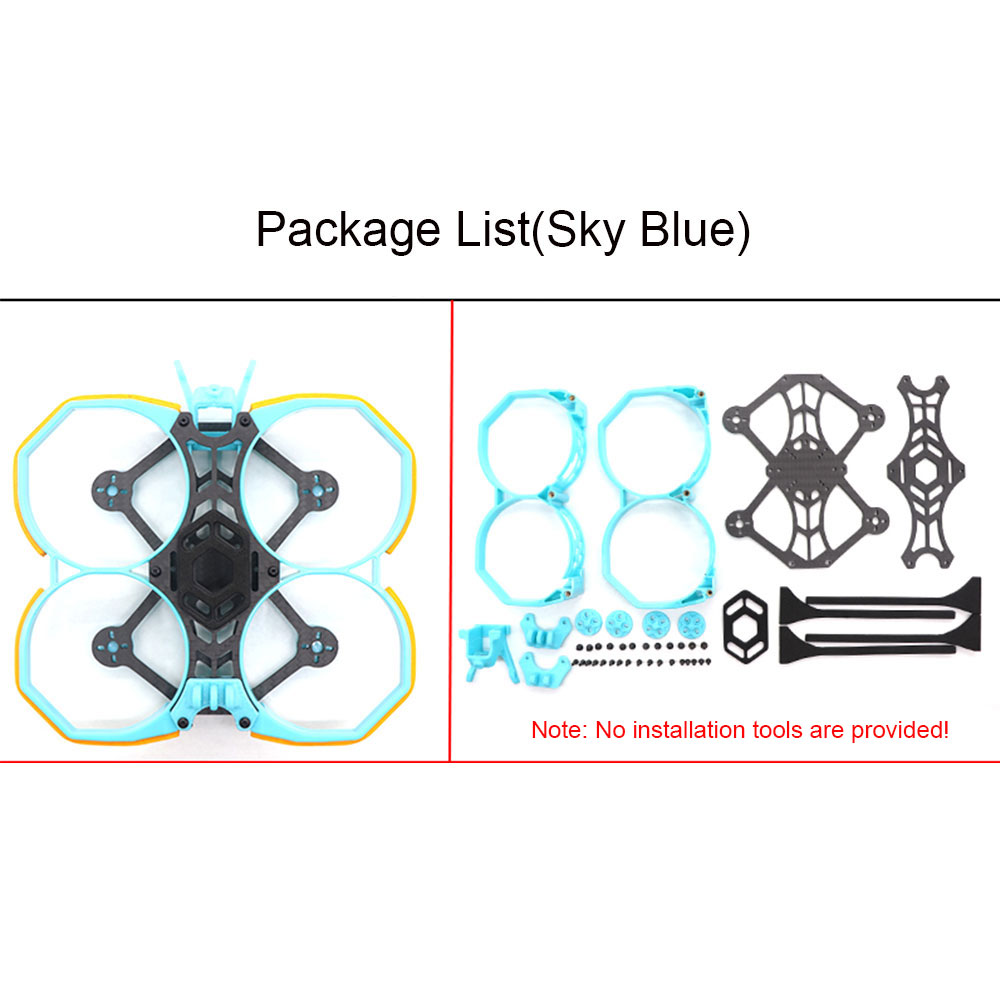

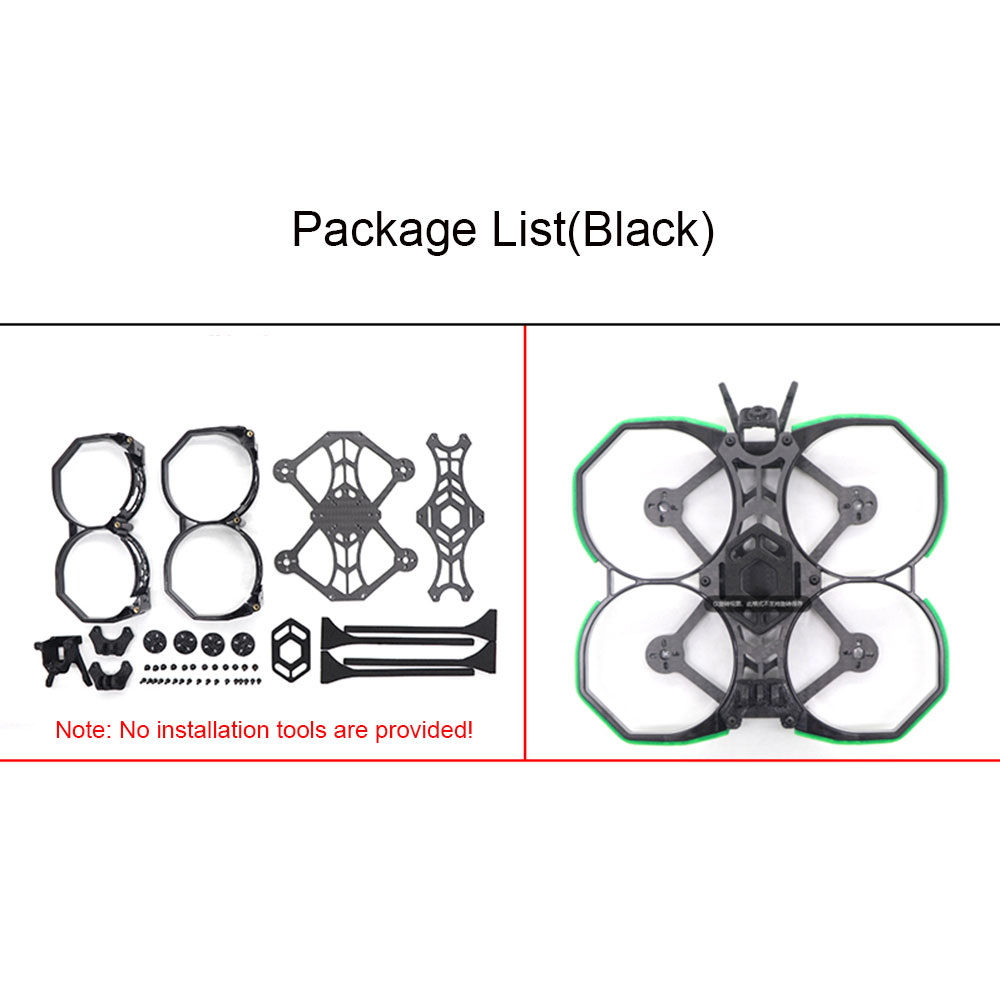

Package List:
1x HSKRC Butterfly 25 Frame
