Tags: HGLRC Rekon7 324mm 3K Carbonfaser 7 Zoll Long Range Frame Kit Unterstützung DJI O3 Air Unit für RC FPV Racing Drone
Notice: Comes unassembled. Need build by buyers.Â
Specification:
Brand: HGLRC
Model: Rekon7
Item Name: 324mm Wheelbase 7 Inch for FPV Racing Drone
Material:3K Carbon fiber
Type:7Â inch
Wheelbase: 324mm
Size: 337x246mm
Top plate thickness: 2mm
Bottom plate thickness: 2mm
Middle plate thickness: 2mm
Front arm: 6mm
Rear arm: 6mm
Frame protection bar: 2mm
Camera side plate: 2mm
Top and middle plate space: 20mm
Flight controller mounting hole: 20x20mm/ 30.5x30.5mm
Camera mount: 19x19mm/20x20mm
Motor mounting hole: 16*16/19*19mm
Weight: 152.7g
Recommended parts:(not included)
Flight Controller: Zeus F722
Motor: FlysfishRC Flash 2806.5 1350KV 1750KV 4-6S
ESC: Zeus 48-60A
Camera: 19X19mm/20x20mm
Propeller: 7 inches
Battery: 6S 1800-4200mAh

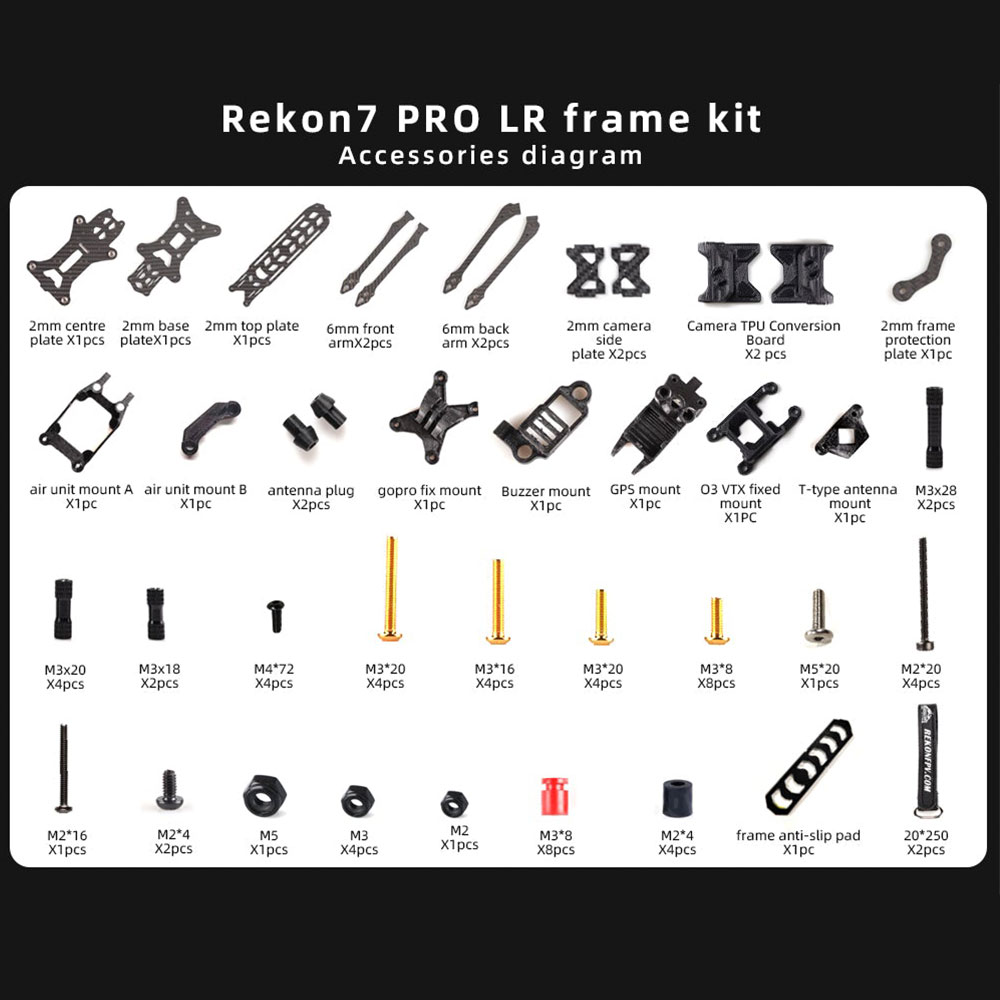

Package includes:
1x Rekon7 Frame Kit ( Support DJI O3 Version)
2x battery straps 20x250mm
1x Battery Anti-slip pad
1x TPU black holder mount for GoProÂ
1x TPU black GPS mount
1x TPU black antenna mount
1x TPU black T-antenna mount
1x TPU black buzzer mount
1x TPU black DJI Air unit Block A
1x TPU black DJI Air unit Block B
1x TPU black DJI O3 holder mount
1x TPU black Camera converting seat
