NOTICE: Cars are not included in the package.
ESC Online Manual Download,Please Click Here
Description:

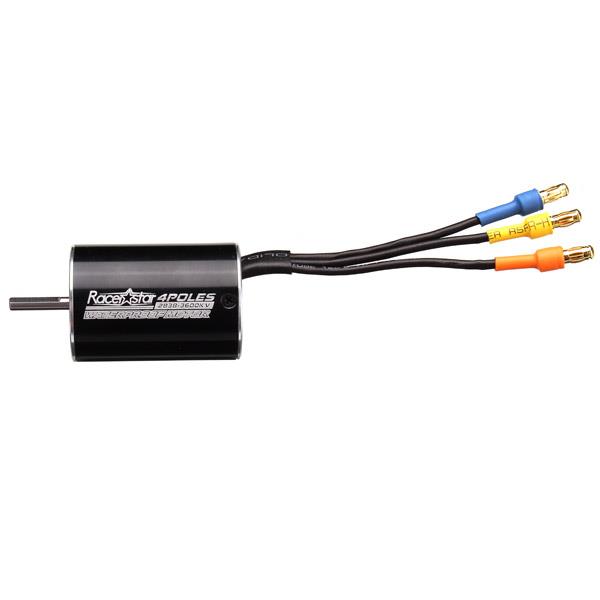

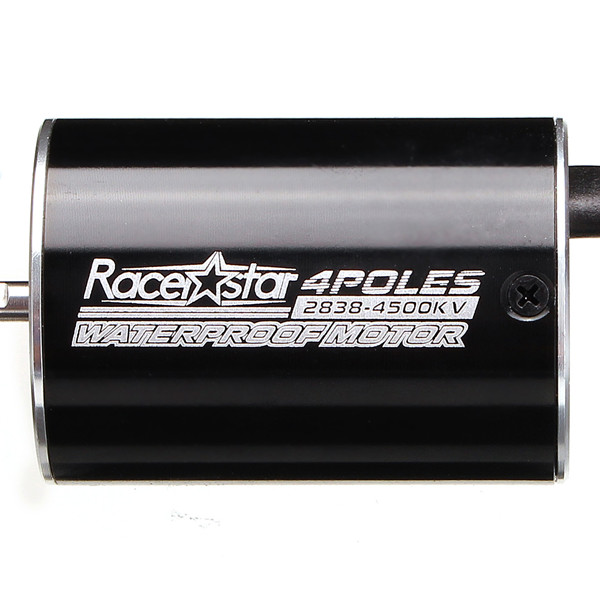

Motor  Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/12, 1/16, 1/18 brushless cars; multi-mounting system for M2.5 screws
- Precision balanced rotor, smoothness for best reliability and maxium RPM

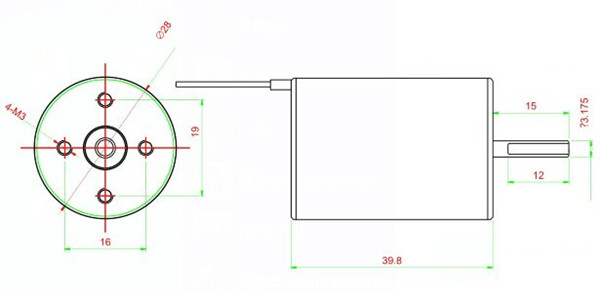

Motor Specification:
|
Product |
Watts |
Max Voltage |
Max Amps |
Rotor Poles |
 IO |
Resistance |
KV
(RPM/Volt) |
Max RPM |
Length |
Diameters |
Weight
(g) |
Shaft
(mm) |
Length of Extend Shaft |
Connector |
|
2838 |
600 |
12V |
50A |
4 |
1.8A |
0.0285 |
4500 |
50000 |
38mm |
28mm |
95 |
ï¿ 3.175 |
15mm |

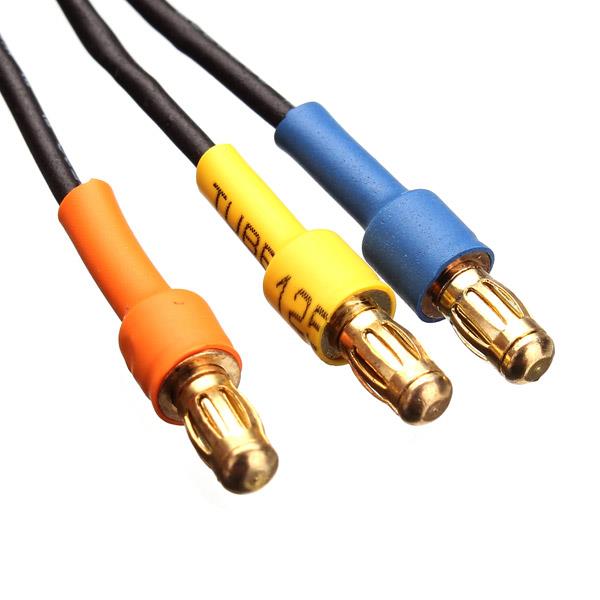

3.5mm gold |
|
2838 |
600 |
14V |
43A |
4 |
1.4A |
0.0415 |
3600 |
50000 |
38mm |
28mm |
95 |
ï¿ 3.175 |
15mm |
3.5mm gold |

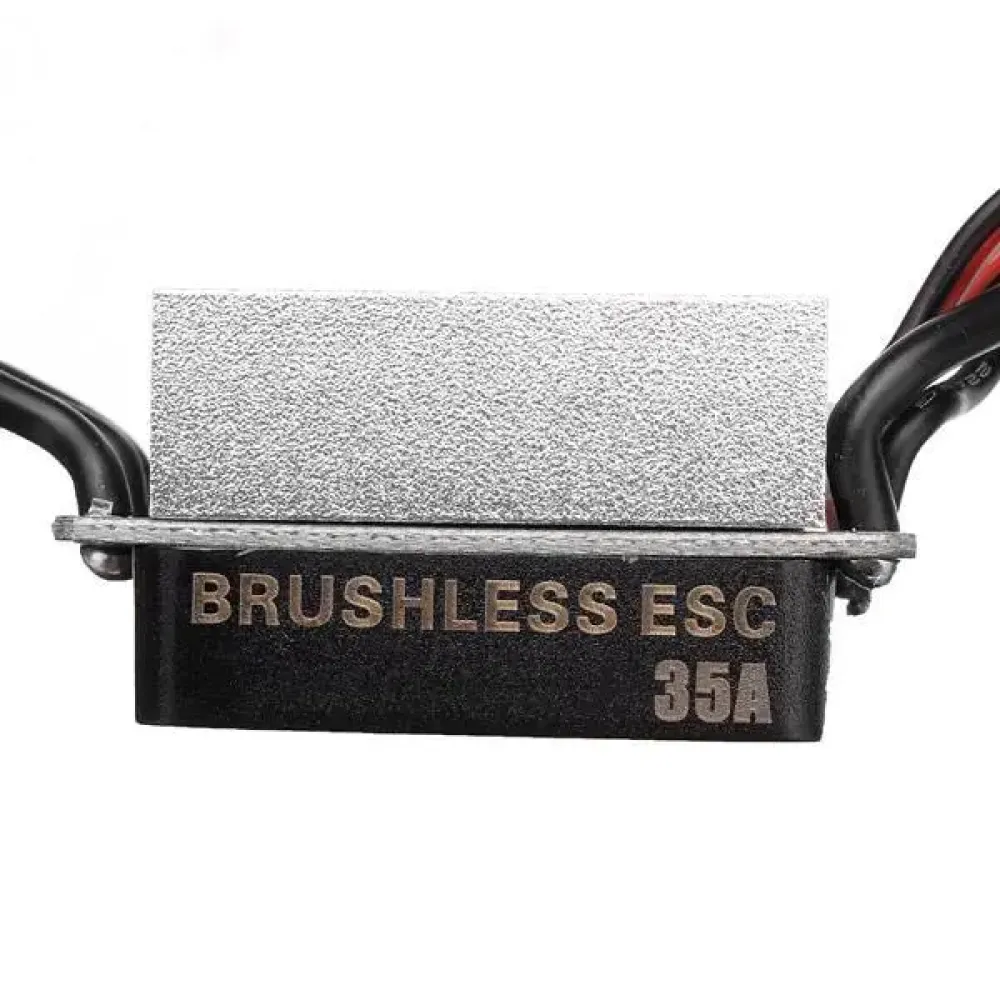

ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: Â low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card
ESC Specifications:
|
Model |
35A |
|
Cont. Current/Burst Current |
35A/120A |
|
Motor Type |
Sensorless Brushless Motor |
|
Suitable  Car |
1/18, 1/16, 1/14 |
|
Suitable Brushless Motor |
≥12T |
|
Resistance |
0.003ohm |
|
Battery |
2-3 cells Lipo
4-9Â cells NiMH |
|
BEC Output |
5V/2A
(analog mode) |
|
Dimension |
25*30*18.5mm |
For ESC program card, please clickÂ
Package Included:
1 X Motor
1 X ESC
2 X Instruction
,
,
,
,
,
,
,
,
,
,
